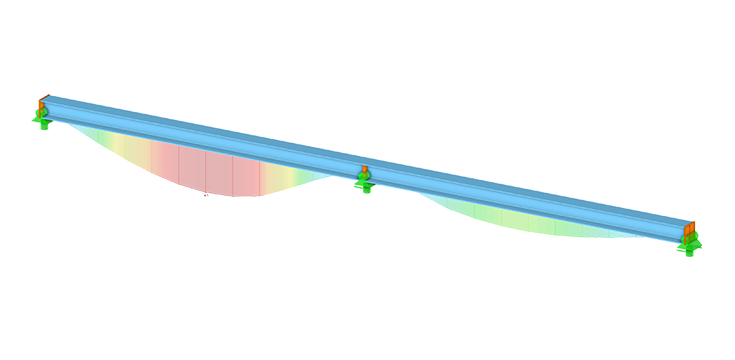

Using AISC Manual tables, determine the available compressive and flexural strengths and if the ASTM A992 W14x99 beam has sufficient available strength to support the axial forces and moments shown in Figure 1, obtained from a second-order analysis that includes P-𝛿 effects.
Verification Example 001006 | 2
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Total Weight | 0.629 tons |
| Dimensions (Metric) | 4.923 x 0.655 x 0.655 m |
| Dimensions (Imperial) | 16.15 x 2.15 x 2.15 feet |
| Program Version | 5.16.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
