The model shows the use of concrete in construction using representative construction approaches. It illustrates how concrete is used as a primary building material to create durable and resistant components. The repeated use of concrete construction underlines the focus on typical examples of its use in structural engineering. The model thus provides a practical insight into the use of modern concrete construction methods.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

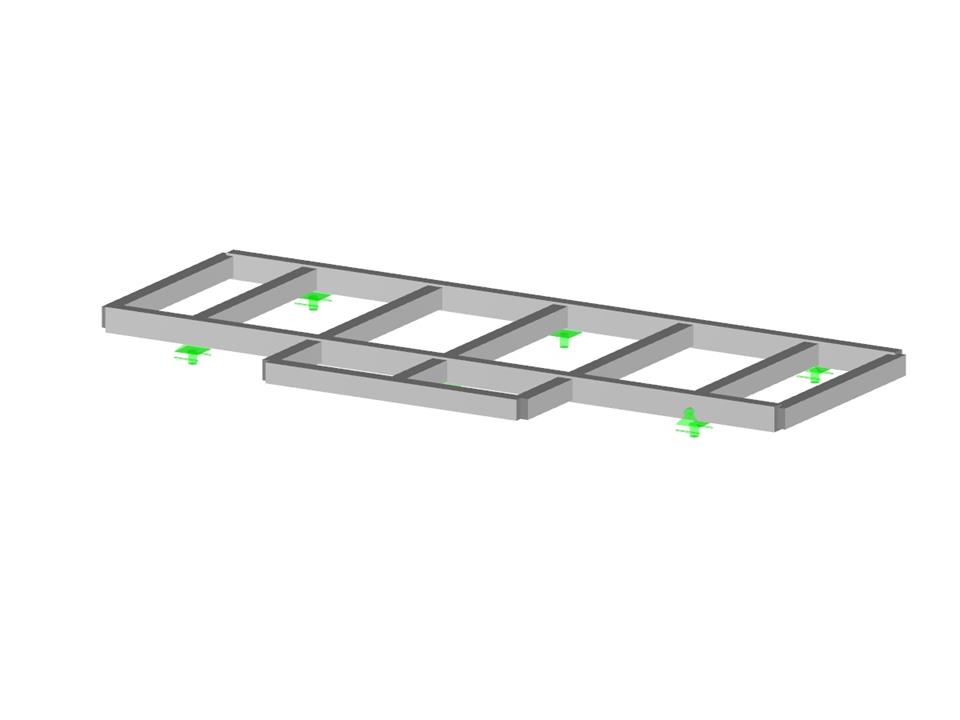

Concrete Structure

Number of Nodes 17
Number of Members 24
Number of Load Cases 2
Number of Load Combinations 5
Total Weight 31,706 t
Dimensions (Metric) 16.000 x 7.250 x 0.500 m
Dimensions (Imperial) 52.49 x 23.79 x 1.64 feet
Program Version 8.00.45

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
