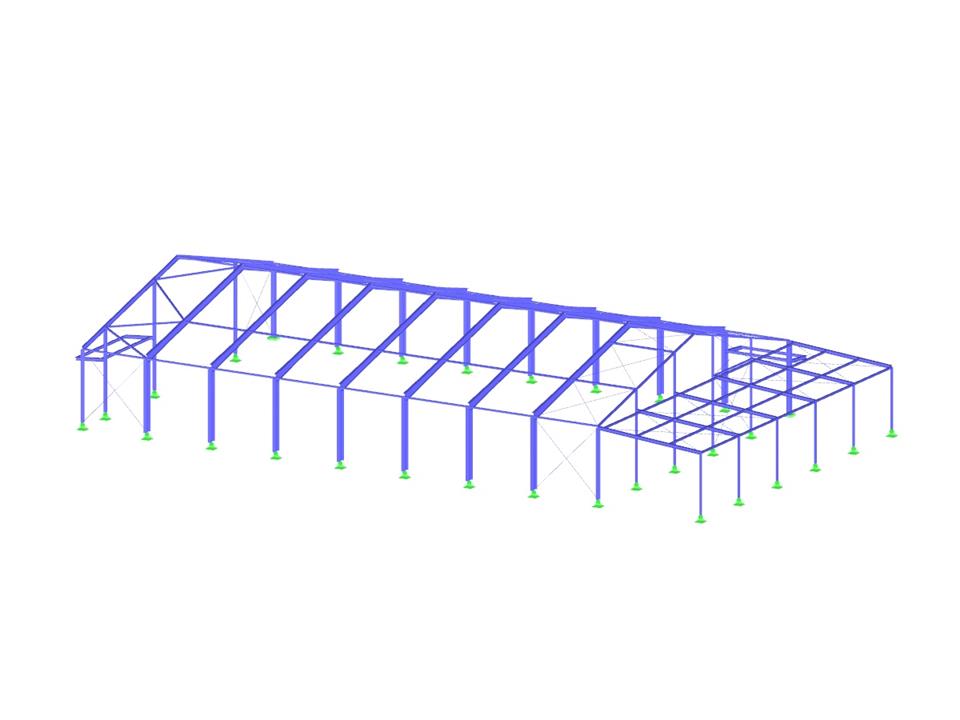

The model presents a modern steel frame structure, featuring a precisely designed two-hinged frame and an elegant built-on canopy with glass roofing. Cold-formed steel cross-sections were incorporated to achieve a robust and aesthetic solution. The structure is ideal for projects of hall structures, emphasizing both safety and design. The design was carried out by NOBA Hallenbau GmbH.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Frame Structure with Double-Hinged Frame and Canopy

No Download Possible Customer Project / View Only
Number of Nodes 140
Number of Members 235
Number of Load Cases 14
Number of Load Combinations 15
Number of Result Combinations 2
Total Weight 28,431 t
Dimensions (Metric) 44.350 x 24.750 x 7.670 m
Dimensions (Imperial) 145.51 x 81.2 x 25.16 feet
Program Version 8.00.38
