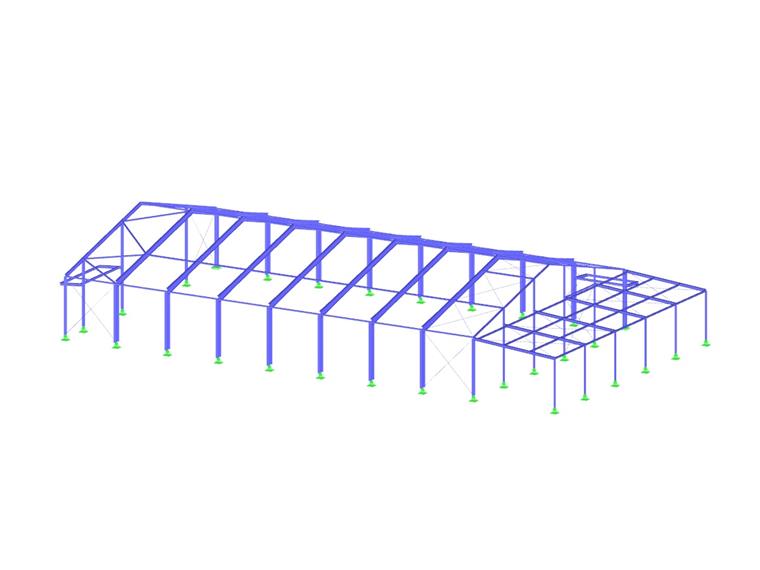

The steel frame structure consists of a double-hinged and built-on frame canopy as well as glass roofing.
| Structural Design | NOBA Hallenbau GmbH Hauptstraße 45 92665 Altenstadt, Germany |
DIY Store in Obertraubling, Germany
DIY Store in Obertraubling, Germany
Project Specifications
DIY Store in Obertraubling, Germany

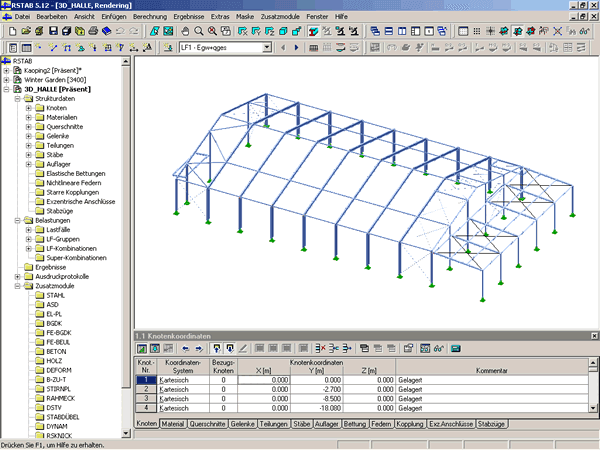

Model Data
Number of Nodes
140
Number of Members
235
Number of Load Cases
14
Number of Load Combinations
15
Number of Result Combinations
2
Total Weight
28,431 t
Dimensions (Metric)
44.350 x 24.750 x 7.670 m
Dimensions (Imperial)
145.51 x 81.2 x 25.16 feet
Program Version
8.00.38
