The RFEM 3D model of a steel hall is used to present the use of cold-formed steel sections in industrial engineering. It provides precise modeling of the supporting structures and connection details. Innovative approaches to material optimization are implemented in a practical way. The structure is ideal for demanding structural steel projects. The focus is on the efficient implementation of modern steel construction methods.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

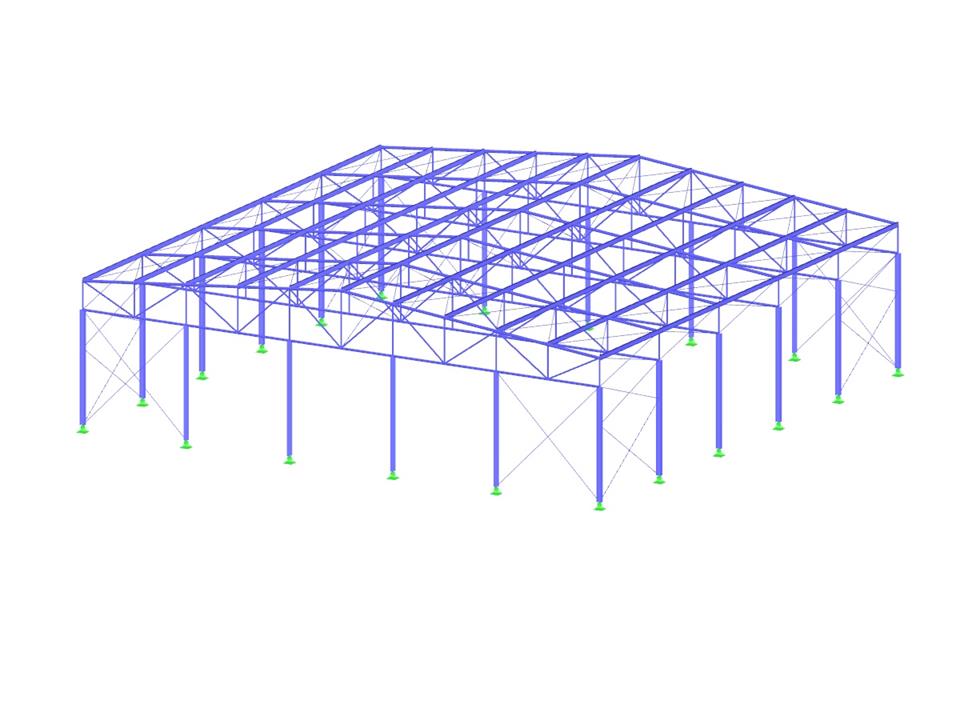

Steel Hall with Cold-Formed Sections

Number of Nodes 164
Number of Lines 437
Number of Members 437
Number of Load Cases 10
Number of Load Combinations 44
Total Weight 32,895 t
Dimensions (Metric) 30.313 x 30.313 x 9.156 m
Dimensions (Imperial) 99.45 x 99.45 x 30.04 feet
Program Version 5.08.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
