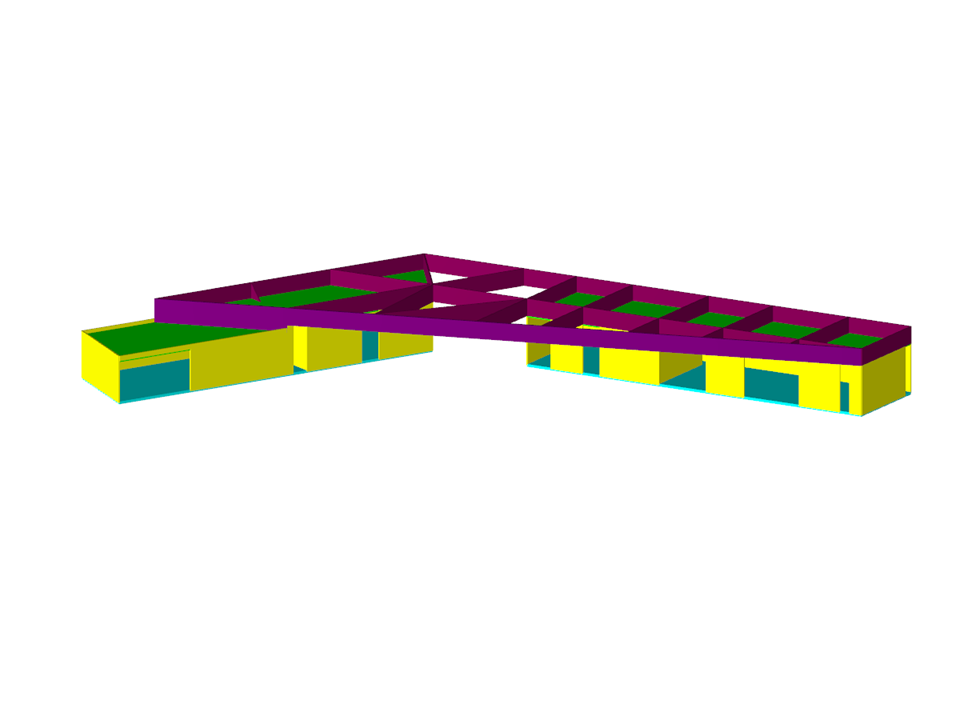

Cross-Laminated Timber Building
| Number of Nodes | 344 |
| Number of Lines | 580 |
| Number of Surfaces | 128 |
| Number of Load Cases | 5 |
| Number of Result Combinations | 94 |
| Total Weight | 87.508 tons |
| Dimensions | 155.47 x 89.11 x 14.4 feet |
| Program Version | 5.24.01 |
Product Feature
Product Feature
Kmod_Enginyeria_en_Fusta_SL_(1).png?mw=350&hash=d95479f00ad156f3c1ce7fa9e5215ddc8ffa68a0)
![Vibration Analysis (Source: [3])](/en/webimage/009798/467822/01-de-png.png?mw=512&hash=2551750327252c0e49d549ec0d9fb2579bfaa885)
![RSTAB 9 results - warping moment Momega [kNm]](/en/webimage/047737/3730153/MTsec.png?mw=350&hash=40c7b896b7ecb6c898b763109dcec0b2a330f9f4)
![RSTAB 9 results - secondary torsional moment MTsec [kNm]](/en/webimage/047736/3730151/MTsec.png?mw=350&hash=40c7b896b7ecb6c898b763109dcec0b2a330f9f4)
![RSTAB 9 results - primary torsional moment MTpri [kNm]](/en/webimage/047735/3730144/MTpri.png?mw=350&hash=2363903e71565c33f1897548cd3f9920f0bc53ba)
![RSTAB 9 results - torional moment MT [kNm]](/en/webimage/047734/3730141/MT.png?mw=350&hash=74333d59da248f9107e5ddaca75765b9666580c3)
In the RF-LAMINATE add-on module for RFEM, the design of torsional shear stresses in the superposition of net and gross cross-section values is possible. The design is performed separately in the x- and y-directions. The loads on the intersection points of cross-laminated timber panels are checked.
- General stress analysis
- Graphical and numerical results of stresses and stress ratios fully integrated in RFEM
- Flexible design with different layer compositions
- High efficiency due to few entries required
- Flexibility due to detailed setting options for basis and extent of calculations
- A local overall stiffness matrix of the surface in RFEM is generated on the basis of the selected material model and the layers contained. The following material models are available:
- Orthotropic
- Isotropic
- User-defined
- Hybrid (for combinations of material models)
- Option to save frequently used layer structures in a database
- Determination of basic, shear, and equivalent stresses
- In addition to the basic stresses, the required stresses according to DIN EN 1995-1-1 and the interaction of those stresses are available as results.
- Stress analysis for structural surfaces including simple or complex shapes
- Equivalent stresses calculated according to different approaches:
- Shape modification hypothesis (von Mises)
- Shear stress hypothesis (Tresca)
- Normal stress hypothesis (Rankine)
- Principal strain hypothesis (Bach)
- Calculation of transversal shear stresses according to Mindlin or Kirchhoff, or user-defined specifications
- Serviceability limit state design by checking surface displacements
- User-defined specifications of limit deflections
- Possibility to consider layer coupling
- Detailed results of individual stress components and ratios in tables and graphics
- Results of stresses for each layer in the model
- Parts list of designed surfaces
- Possible coupling of layers entirely without shear
RFEM and RSTAB models can be saved as 3D glTF models (*.glb and *.glTF formats). View the models in 3D in detail with a 3D viewer from Google or Babylon. Take your VR glasses, such as Oculus, to "walk" through the structure.
You can integrate the 3D glTF models into your own websites using JavaScript according to these instructions (as on the Dlubal website Models to Download).
With the Camera Fly Mode view option, you can fly through your RFEM and RSTAB structure. Control the direction and speed of the flight with your keyboard. Additionally, you can save the flight through your structure as a video.
