This challenging steel structure was designed for a new boiler house in Kočevje, Slovenia. The investor, Melamin d.d. Kočevje, replaced an old steam boiler with a new structural system with an output of 9.8 MW, which includes a biomass storage tank, a woodchips transport system, a steam boiler, and an ash collector. The structural project was implemented while the existing boiler was in operation, which posed additional challenges. AG-inženiring d.o.o. was responsible for the project. More information can be found at ag-i.si.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

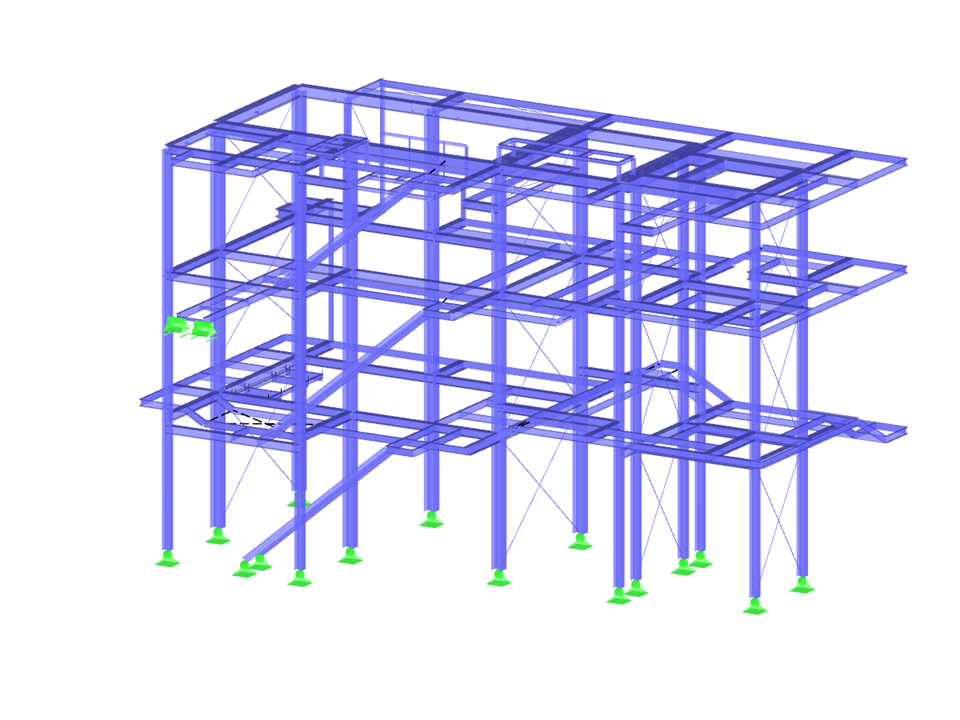

Steel Structure of Boiler House for Biomass Steam Boiler

No Download Possible Customer Project / View Only
Number of Nodes 351
Number of Lines 609
Number of Members 573
Number of Load Cases 6
Number of Load Combinations 12
Number of Result Combinations 4
Total Weight 33.804 t
Dimensions (Metric) 18.515 x 12.194 x 11.564 m
Dimensions (Imperial) 60.74 x 40.01 x 37.94 feet
Program Version 4.10.19
