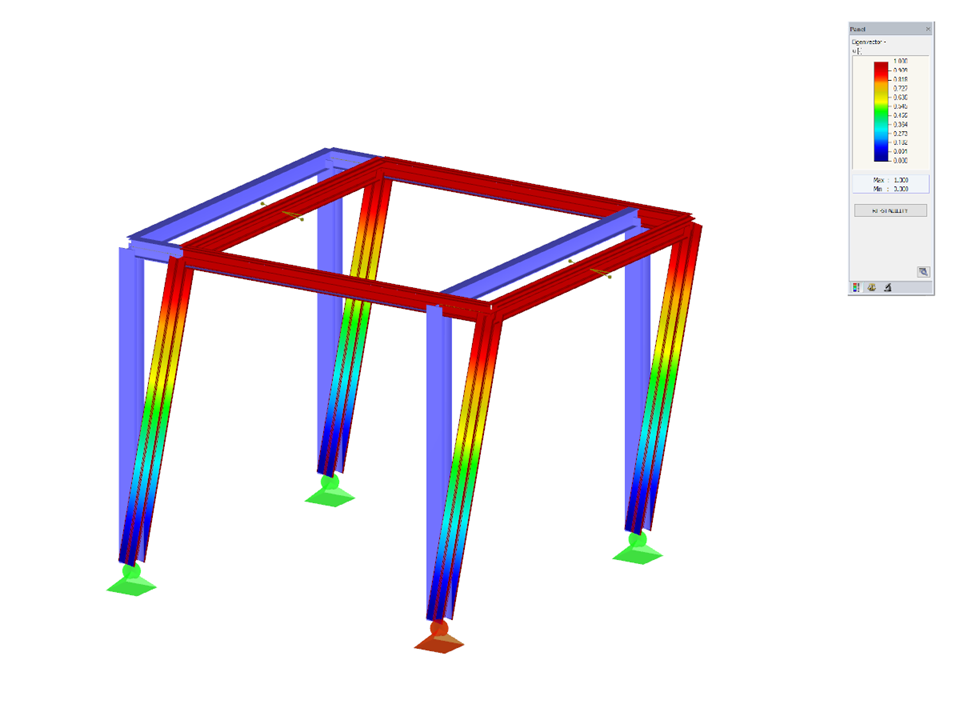

Model with resulting instability. Refer to the webinar FEA Troubleshooting and Optimization in RFEM to learn more about correcting instabilities with this example.
Steel Frame Stability
| Number of Nodes | 9 |
| Number of Lines | 8 |
| Number of Members | 8 |
| Number of Load Cases | 1 |
| Total Weight | 0,545 t |
| Dimensions | 3.295 x 3.295 x 2.867 m |
| Program Version | 5.24.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
