The frame structure is a structural system that consists of at least one beam and one column. This structure is suitable for absorbing bending moments, axial forces, and shear forces that often occur in structural analysis. The application allows for a precise design review of supporting structures by displaying the structural loading in detail.

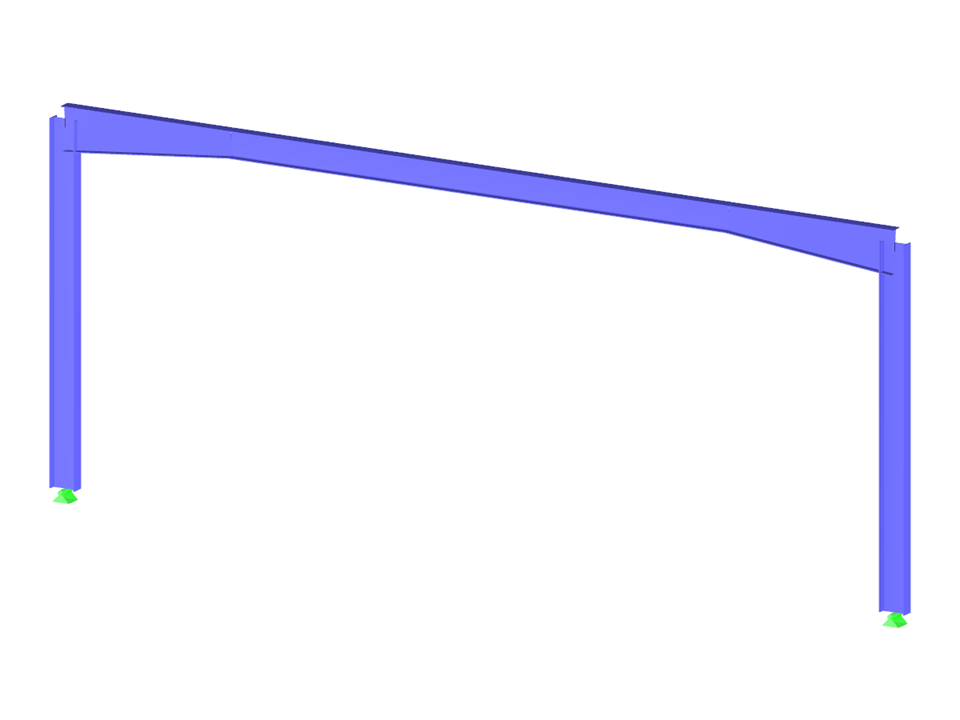

Structural Analysis of Frame Structure
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Load Cases | 1 |
| Total Weight | 0.777 t |
| Dimensions (Metric) | 10.500 x 0.500 x 4.250 m |
| Dimensions (Imperial) | 34.45 x 1.64 x 13.94 feet |
| Program Version | 5.25.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
