The model is presented in the creation and display of a temporary analytical model for the analysis of glass surfaces. Controlled inputs are processed and results are clearly displayed in the form of a generated model. The technical display clearly visualizes the structure of the glass surface and supports the targeted application of the model. All information is a precise summary of the essential features for controlling inputs and generating models.
Model Used in

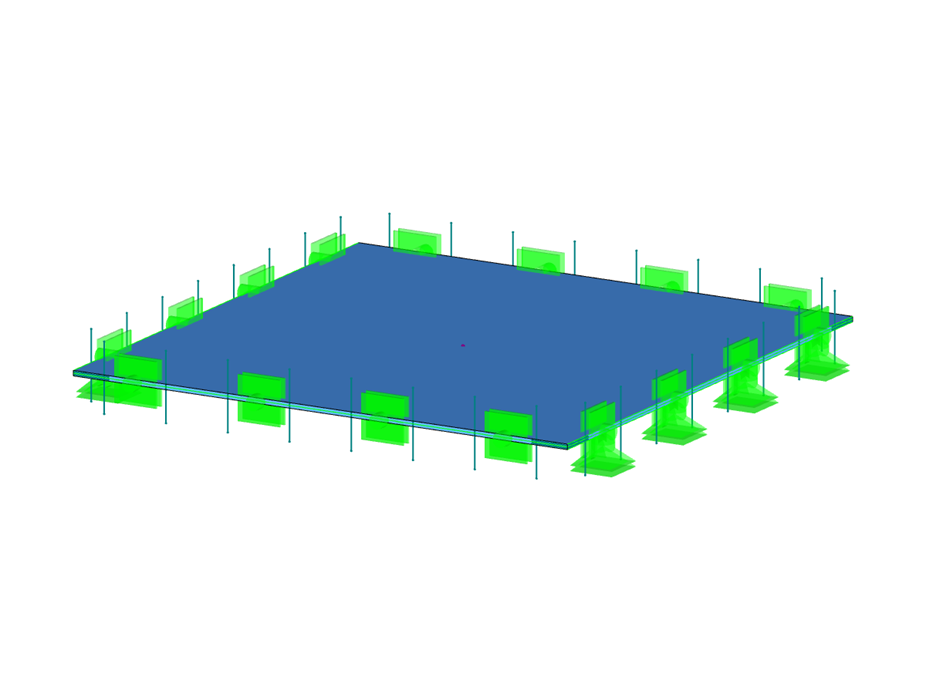

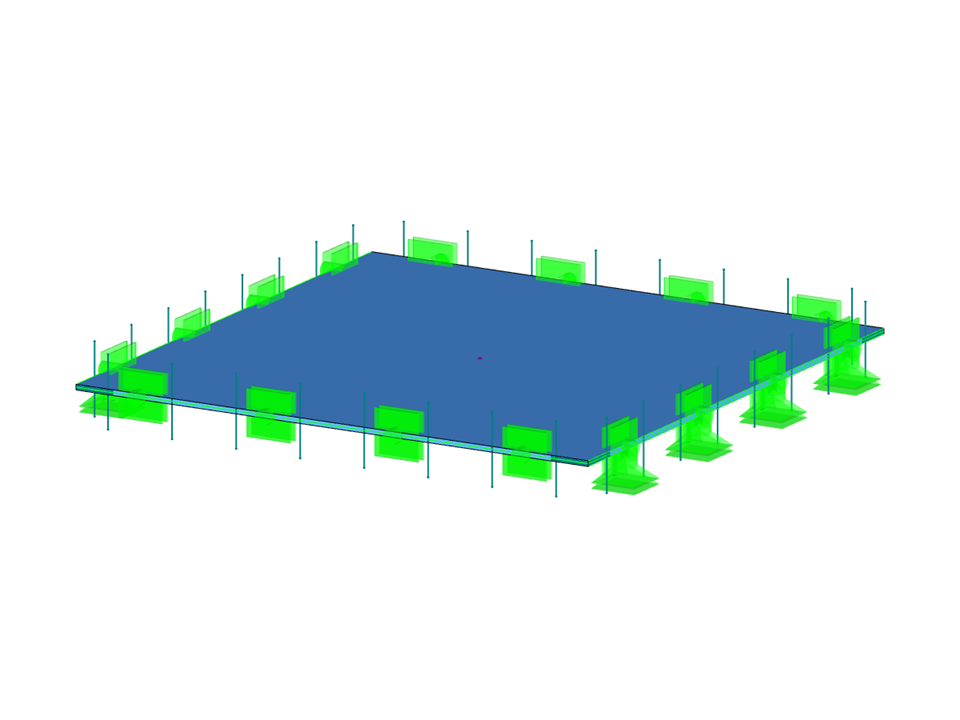

Glass Surface | Temporary Analysis Model
| Number of Nodes | 12 |
| Number of Lines | 16 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.081 t |
| Dimensions (Metric) | 1.000 x 1.000 x 0.010 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0.03 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
