The model is based on a steel frame, which is presented in FAQ 004466. It provides a detailed analysis of the cross-sections and an insight into the associated cross-section library. The display includes essential technical properties of the steel frame. It can be used in a number of practical applications, including checking component geometries and optimizing cross-sections.
Model Used in

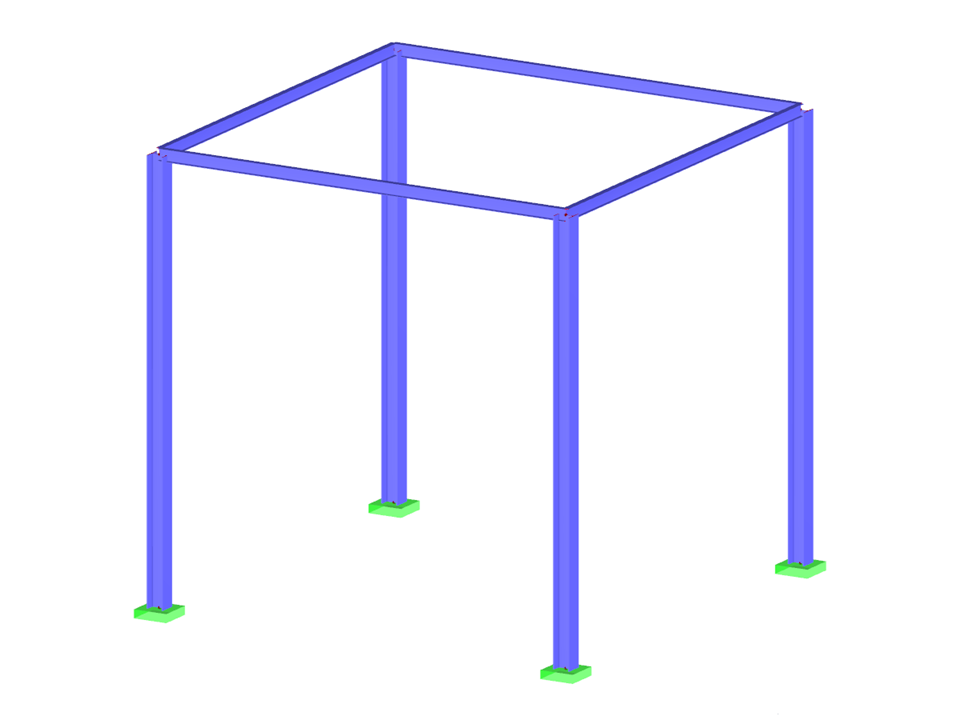

Steel Frame
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 8 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 4 |
| Total Weight | 1,484 t |
| Dimensions (Metric) | 5.400 x 5.400 x 5.200 m |
| Dimensions (Imperial) | 17.72 x 17.72 x 17.06 feet |
| Program Version | 5.23.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
