This model illustrates the conditions for determining lateral-torsional buckling of cantilever beams. It explains the influence of the effective length factor, the buckling length factor, and the boundary condition on the degree of freedom, as well as the ideal lateral-torsional buckling moment. It also explains how warping and the critical moment contribute to the load-bearing capacity analysis. The practical illustration supports the understanding of complex loading conditions.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

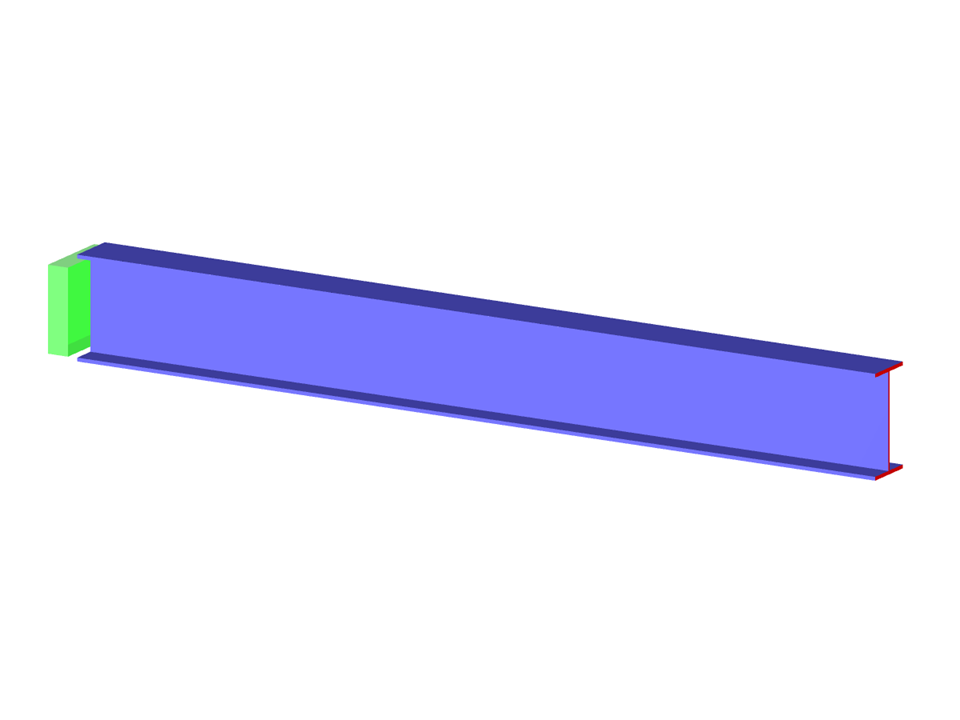

Lateral-Torsional Buckling Analysis of Cantilever

Number of Nodes 2
Number of Members 1
Number of Load Cases 1
Total Weight 0,106 t
Dimensions (Metric) 2.695 x 0.389 x 0.389 m
Dimensions (Imperial) 8.84 x 1.28 x 1.28 feet
Program Version 8.26.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
