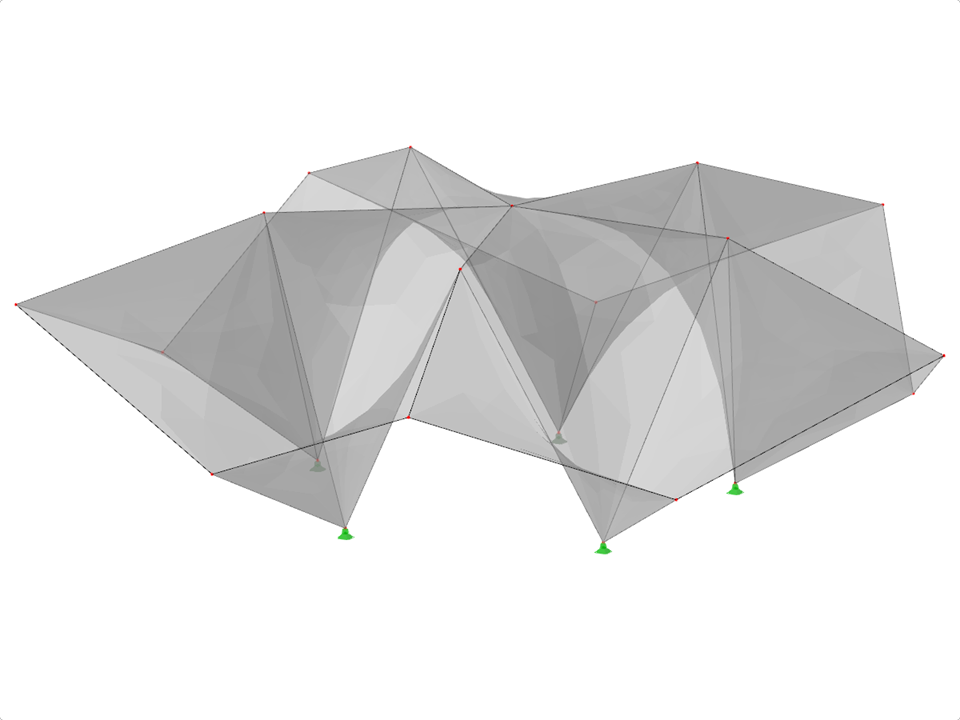

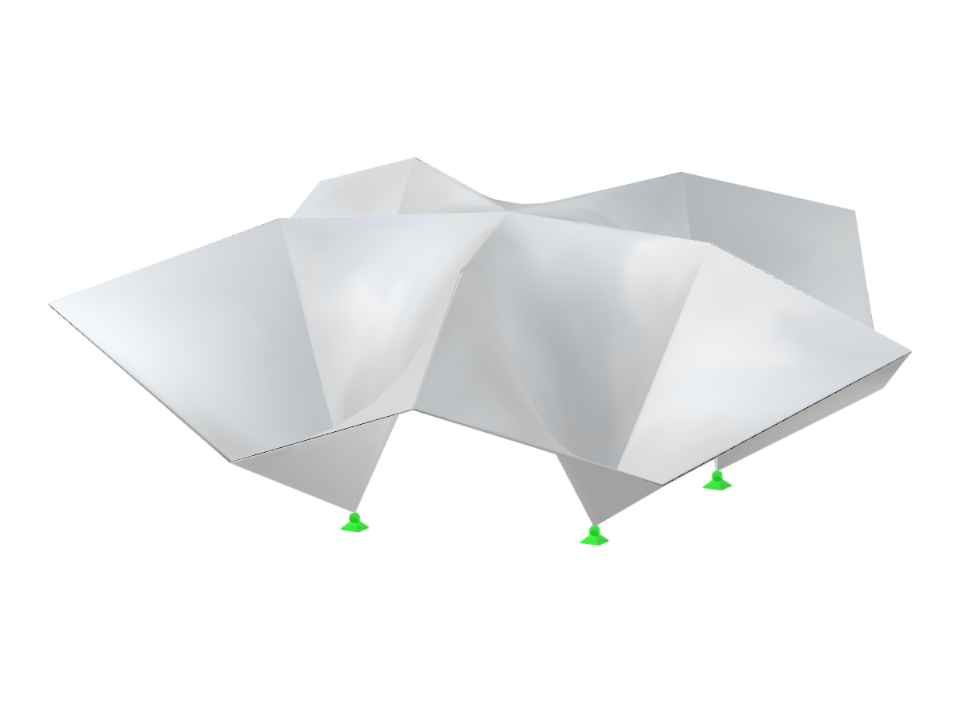

This model demonstrates the design of anticlastic shells using input parameters such as the number of sides of the support polygon (5 or more), its length, and height. The approach focuses on form-finding techniques for complex geometries utilizing Dlubal Software features, providing insight into efficient and dynamic structures. This design methodology supports innovative architectural expressions and optimal load distribution in shell structures.
Anticlastic Shell Design Based on Support Polygon Properties
| Block parameters editable dynamically | |
| Number of Nodes | 21 |
| Number of Lines | 35 |
| Number of Members | 0 |
| Number of Surfaces | 15 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 276.486 tons |
| Dimensions (Metric) | 30.777 x 10.000 x 32.361 m |
| Dimensions (Imperial) | 100.97 x 32.81 x 106.17 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
