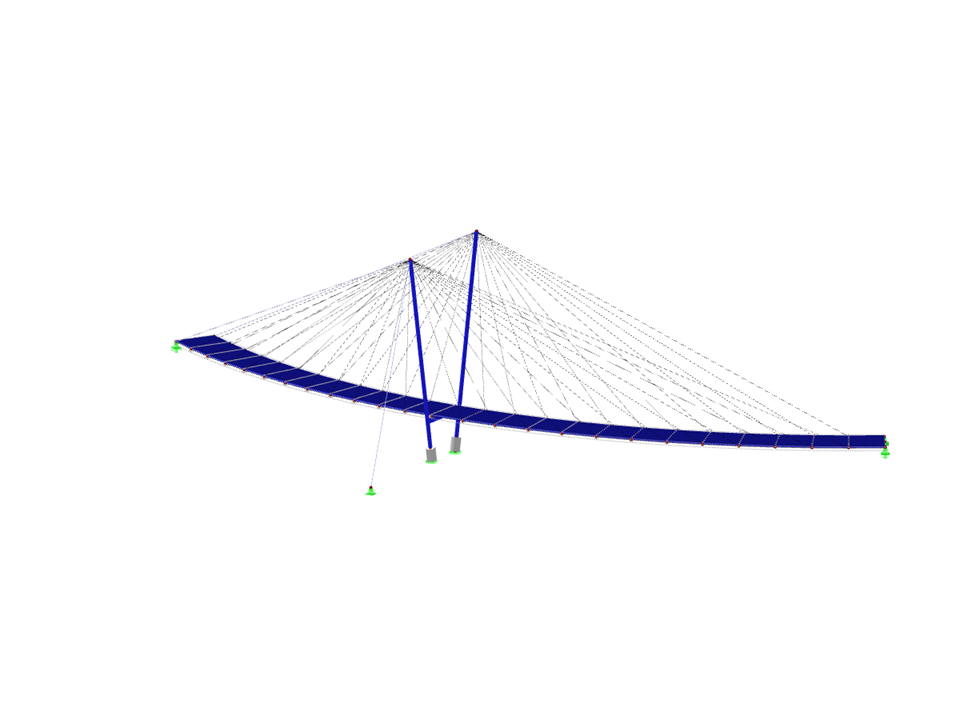

Cable-Stayed Bridge
| Number of Nodes | 93 |
| Number of Members | 192 |
| Number of Load Cases | 23 |
| Number of Load Combinations | 22 |
| Total Weight | 179.702 tons |
| Dimensions | 377.79 x 129.32 x 100.89 feet |
| Program Version | 8.25.01 |
Customer Project
Product Feature
Knowledge Base
Customer Project
Knowledge Base
Knowledge Base
.png?mw=350&hash=fe72c46b04993d960fc1b58d5270301861f6f9e5)
The RF-MOVE/RSMOVE add-on module does not display any result windows: You can check the created load cases, including loads, in RFEM/RSTAB. Descriptions of the individual moving loads are created on the basis of the respective load increment number.
However, it is possible to modify the descriptions in RFEM/RSTAB. You can export all data in tables to MS Excel.
You can create various load cases with a single mouse click. After the generation, the numbers of created load cases and result combinations are displayed.
Sets of members with moving loads are selected graphically in the RFEM/RSTAB model. You can apply several different types of loads to one set of members at the same time.
By specifying the first load position, you can precisely display the load entering the runway of the continuous member. In the same way, it is possible to define whether a moving load consisting of various load applications is allowed to move beyond the end of continuous members (bridge) or not (crane runway).
The increment of the individual load positions is determined by the number of load cases generated for RFEM/RSTAB. You can also add loads to already existing RFEM/RSTAB load cases so that no additional superposition is required. Several load types are available, for example single, linear and trapezoidal loads as well as load pairs and several uniform concentrated loads.
It is possible to apply the loads in local and global directions. The application can refer to the true member length or to the projection in a global direction.
- Generation of up to 9,999 load cases from moving load positions
- Parameterized load positions of various concentrated and distributed loads
- Summary of several moving loads in one generation case
- Possibility to add loads to the already existing RFEM/RSTAB load cases
- Generation of a result combination to determine the most unfavorable load position
- Possibility to save load specifications for further use in other structures
