Online Manual RFEM | Surfaces

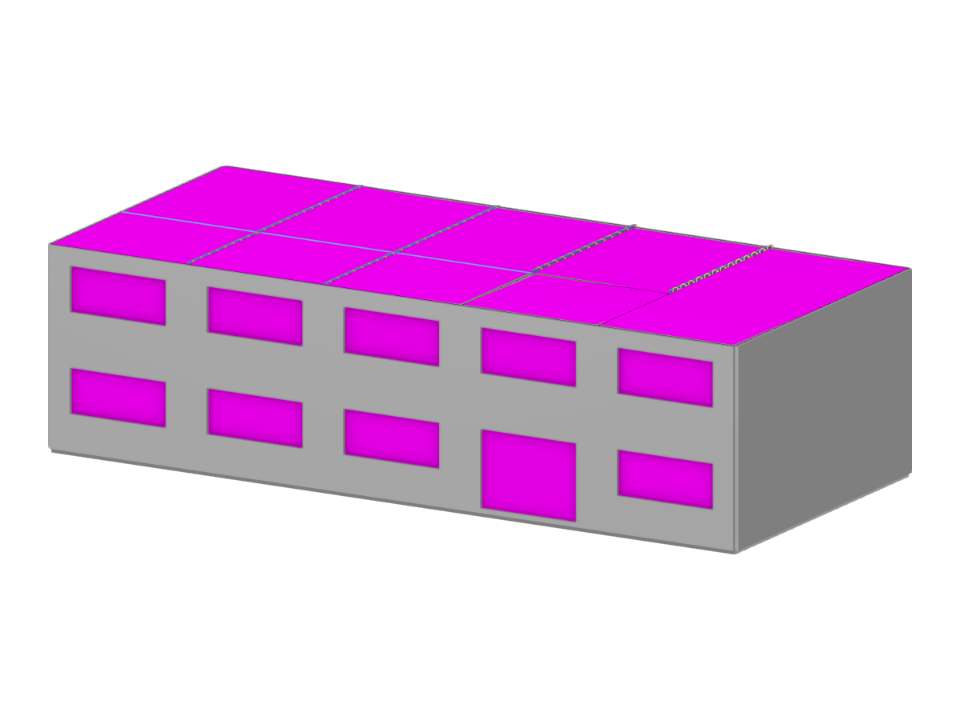

Reinforced Concrete Building
| Number of Nodes | 136 |
| Number of Lines | 166 |
| Number of Members | 30 |
| Number of Surfaces | 41 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 619.549 tons |
| Dimensions | 82.02 x 21.92 x 36.09 feet |
