This model of a reinforced concrete building was developed for finite element analysis with RFEM. It represents practical application cases from the free webinar "Considering Construction Stages in RFEM 6" presented on January 13, 2022 (English), and January 11, 2022 (German). The model integrates technical parameters, such as construction stage, construction process, and construction phase, allowing for realistic simulations. It provides engineers with a solid basis for further analysis and design.
Model Used in

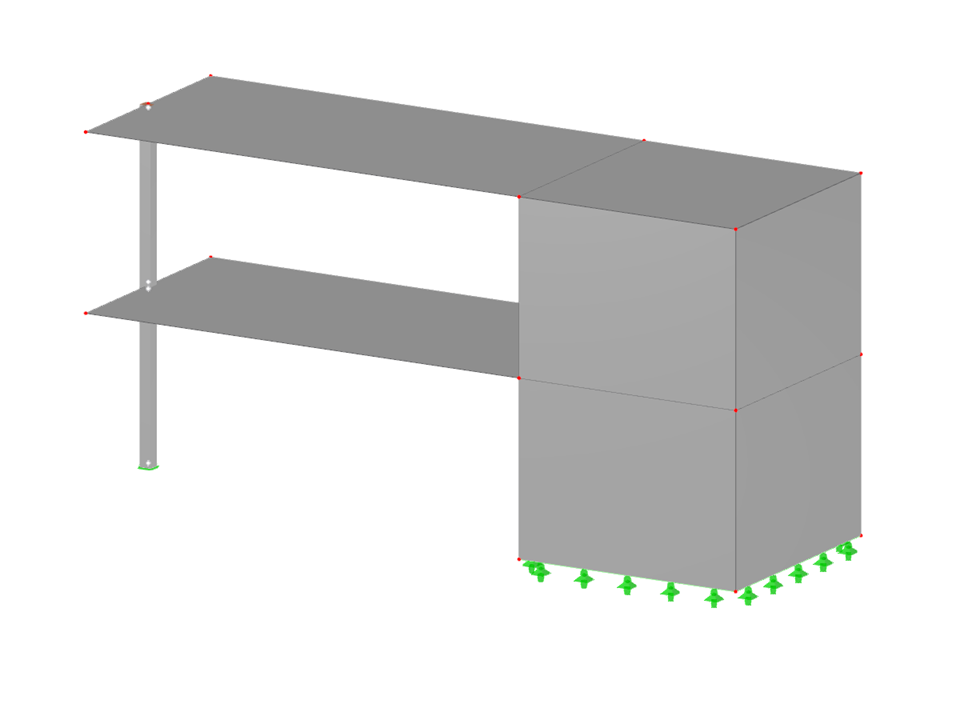

Reinforced Concrete Building
| Number of Nodes | 19 |
| Number of Lines | 30 |
| Number of Members | 2 |
| Number of Surfaces | 12 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 144,600 t |
| Dimensions (Metric) | 12,000 x 6,000 x 4,000 m |
| Dimensions (Imperial) | 39.37 x 19.69 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
