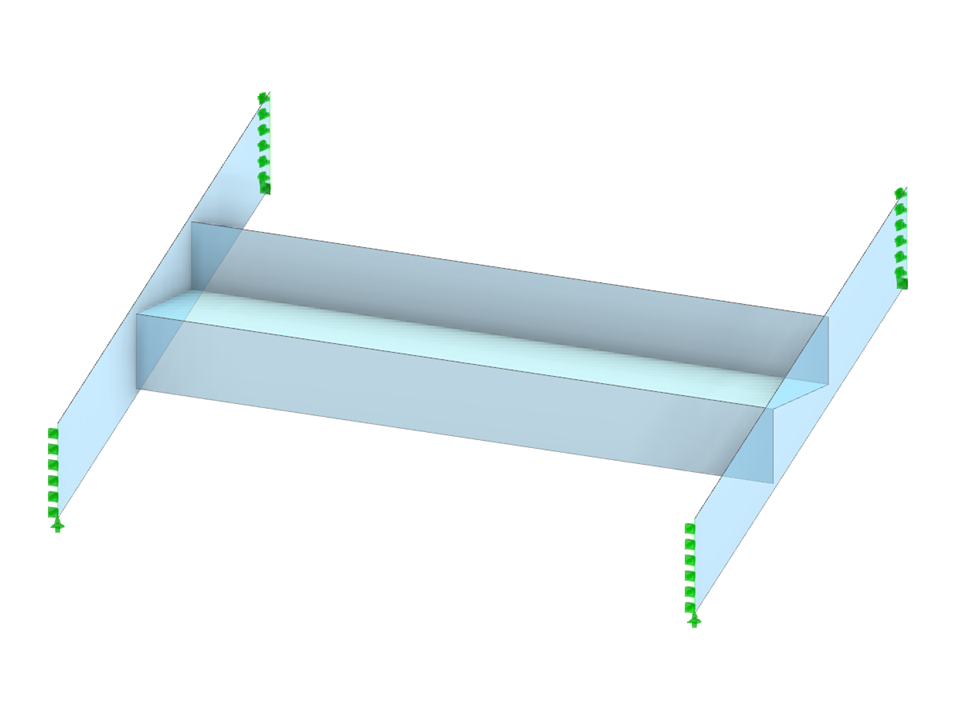

Stringer with Weld Element
Model to Download
RFEM 6 allows you to define welds between two surfaces as special elements. Here is a model of a stringer with weld design.
- Views 379x
- Downloads 21x
- Updated 27 June 2022
- Number of Nodes 16
- Number of Lines 18
- Number of Members 0
- Number of Surfaces 5
- Number of Solids 0
- Number of Load Cases 3
- Number of Load Combinations 3
- Number of Result Combinations 0
- Total Weight 0.020 t
- Dimensions 0.577 x 0.467 x 1.000 m
