Truss system for spherical planes

Spherical segments with parallel trussing.

Parallel lattice dome.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

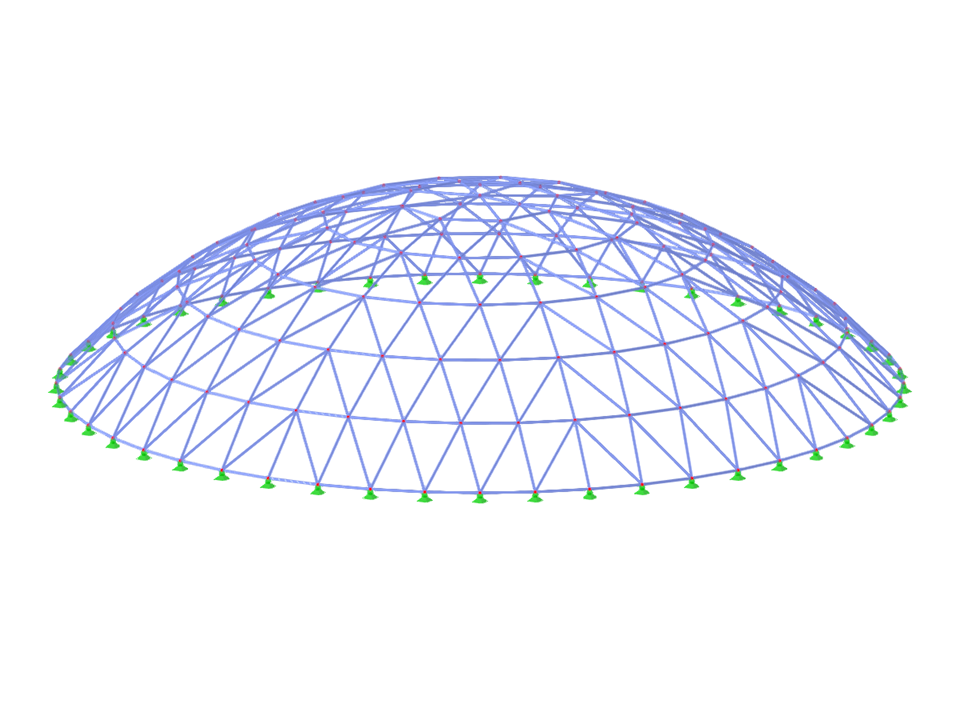

TSC008 | Truss System for Spherical Planes

Block parameters editable dynamically
Number of Nodes 169
Number of Lines 456
Number of Members 456
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 1
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 5.462 tons
Dimensions 78.74 x 18.04 x 78.74 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
