Download the model of tensile membrane structure here and open it with the finite element program RFEM.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

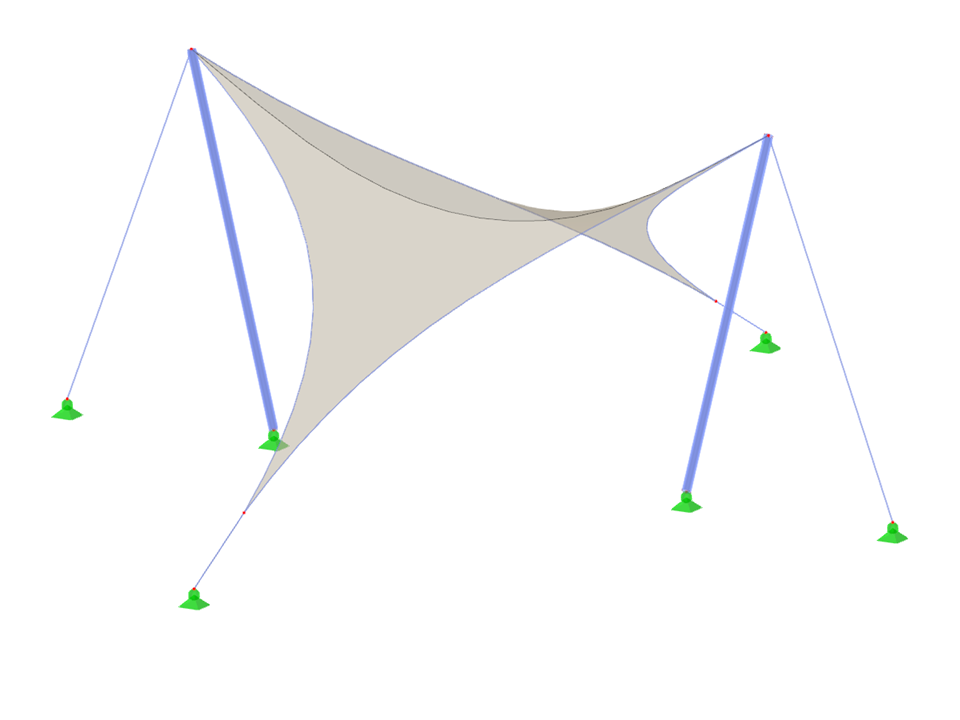

TMS053 | Tensile Membrane Structure

Block parameters editable dynamically
Number of Nodes 10
Number of Lines 11
Number of Members 10
Number of Surfaces 2
Number of Solids 0
Number of Load Cases 1
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 0.170 tons
Dimensions 32.81 x 13.12 x 39.37 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
