FAQ 005383 | Splice Connection according to AISC 360-16 Example II.A-3

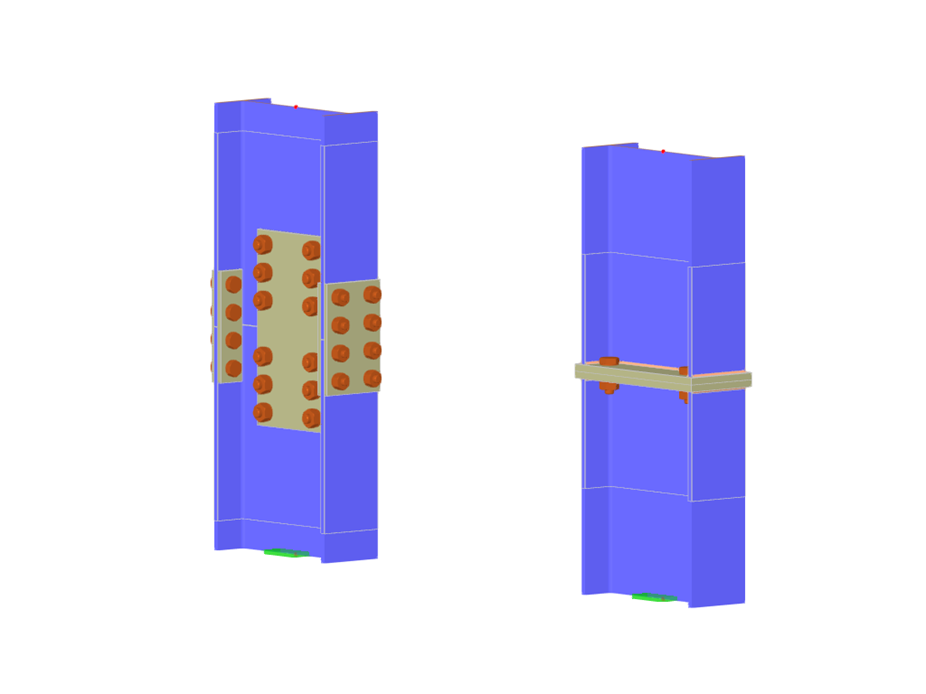

Splice Connection | AISC 360-16
| Number of Nodes | 6 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.182 tons |
| Dimensions | 5 x 4 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
