.png?mw=926&hash=4f82bb60063b76546e125a9195270533f2ae54d3)

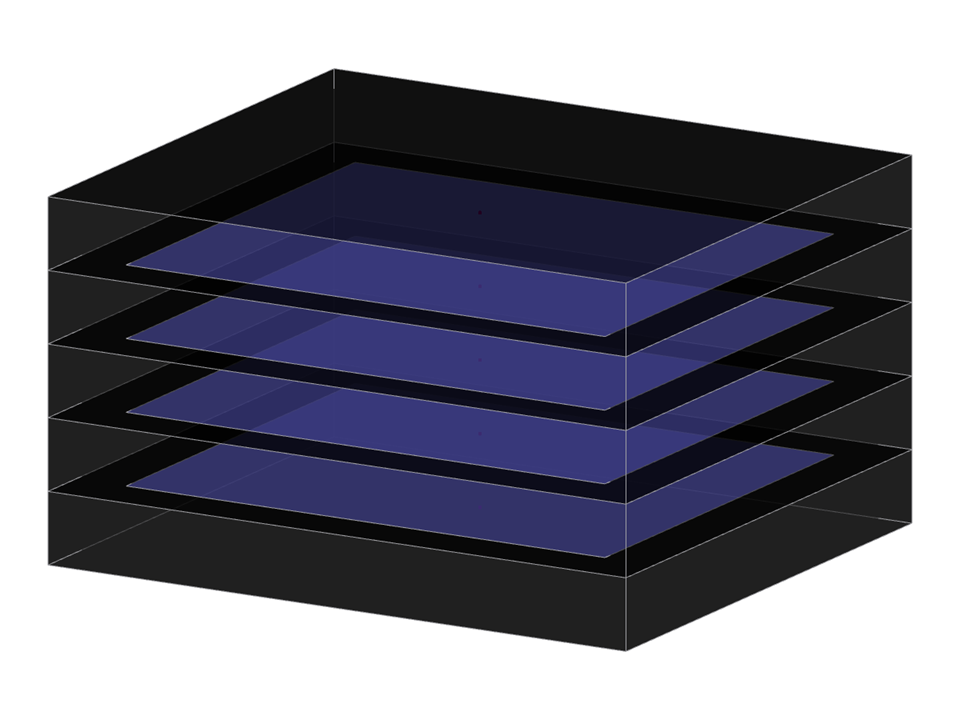

Parameterization of a neoprene support modeled as a solid, with four steel reinforcing plates. Finite element mesh refinement in solids.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Neoprene Support
| Block parameters editable dynamically | |
| Number of Nodes | 40 |
| Number of Lines | 60 |
| Number of Surfaces | 30 |
| Number of Solids | 5 |
| Total Weight | 0.040 tons |
| Dimensions | 1.15 x 0.98 x 0.66 feet |
| Program Version | 5.28.03 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
