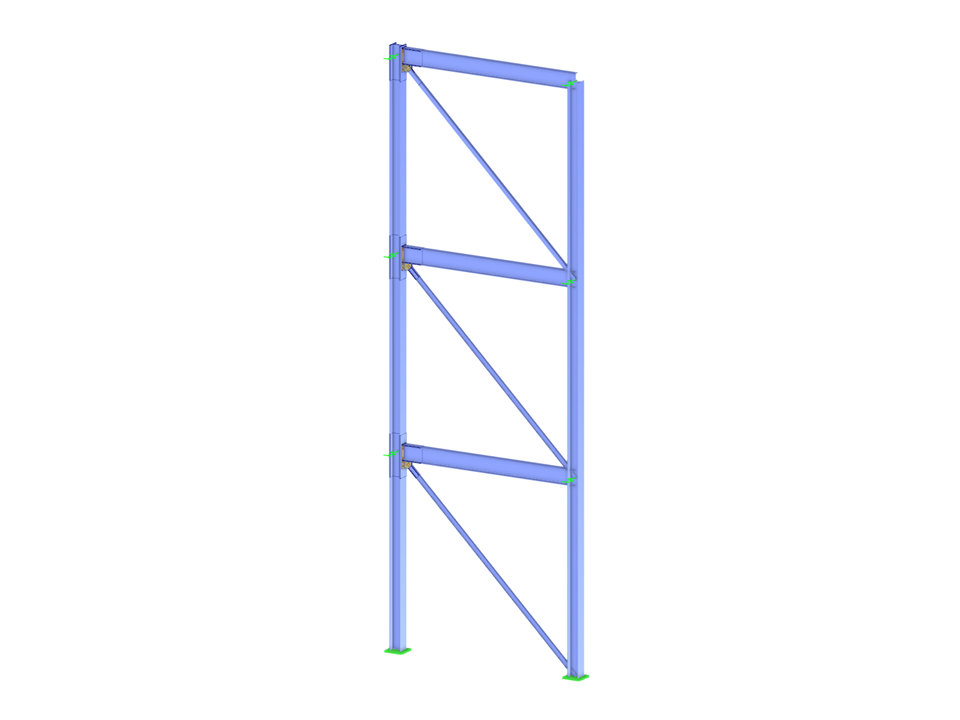

Multistory Frame Made of Steel with Bracing Diagonals
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 12 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 4.731 tons |
| Dimensions | 16.4 x 49.21 x 0 feet |
