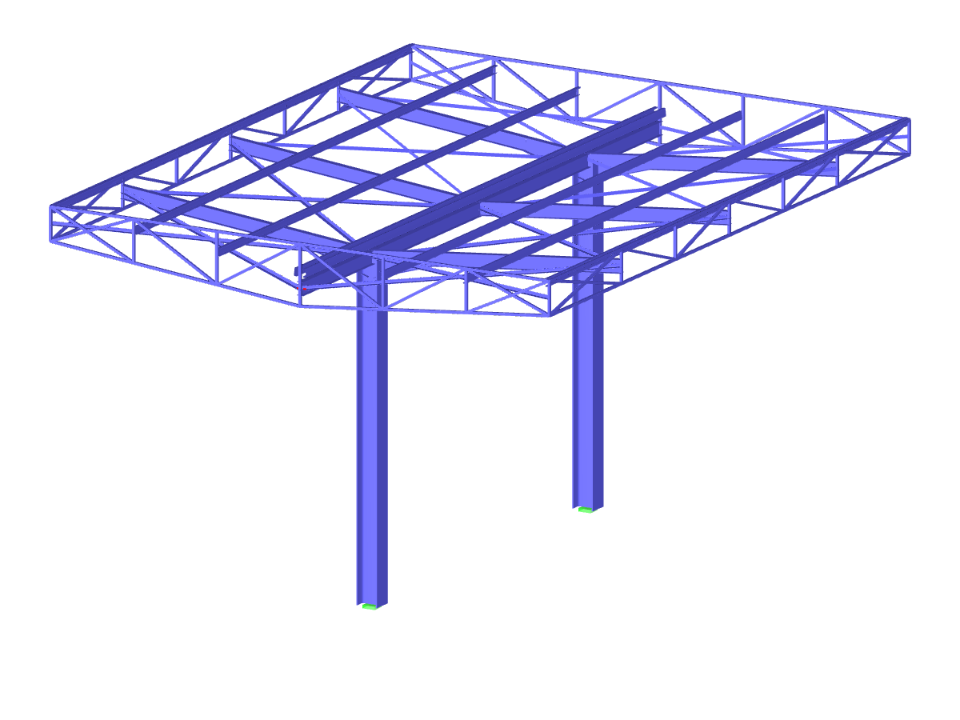

Complete parameterization of the geometry of the service station structure, bracings, full web beams and lattice girders.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Service Station
| Block parameters editable dynamically | |
| Number of Nodes | 101 |
| Number of Lines | 174 |
| Number of Members | 174 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 2 |
| Total Weight | 2.396 tons |
| Dimensions | 26.25 x 32.81 x 19.38 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
