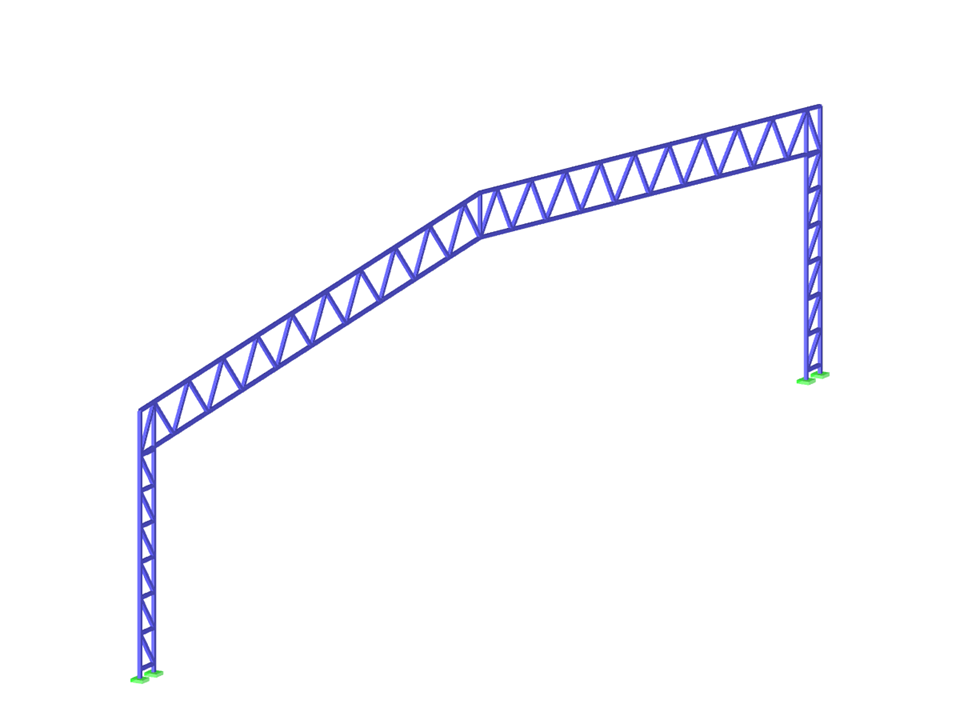

Complete parameterization of the hall geometry, variable angle, beam and column grid with independent diagonal spacing.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Portal with Tubular Sections
| Block parameters editable dynamically | |
| Number of Nodes | 76 |
| Number of Lines | 143 |
| Number of Members | 143 |
| Total Weight | 1.180 tons |
| Dimensions | 0.66 x 97.44 x 24.85 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
