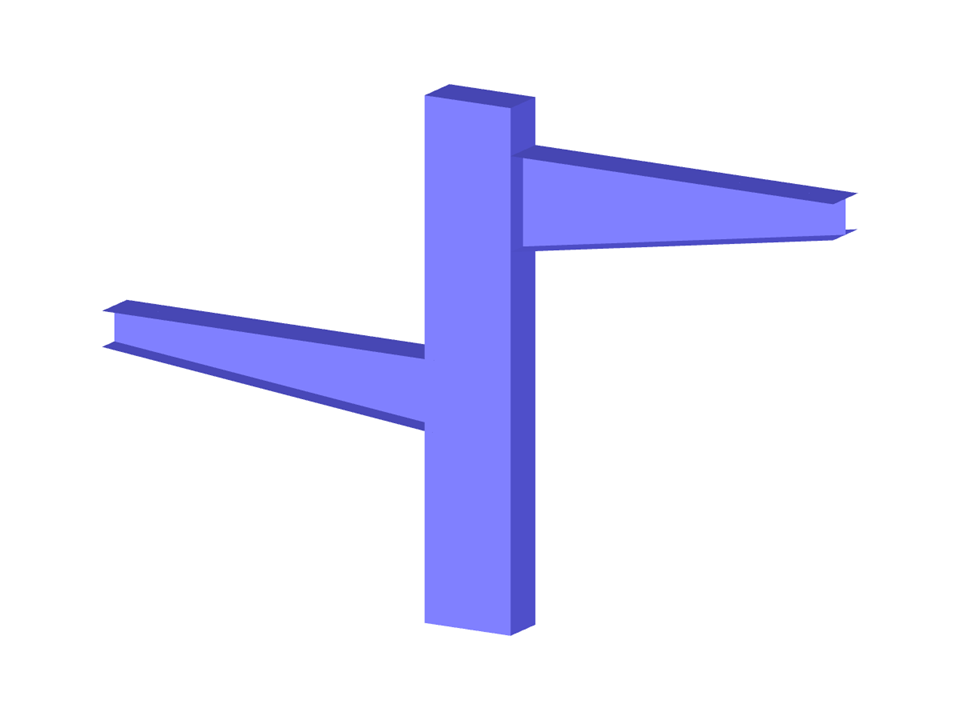

Parameterization of the geometry of a rectangular section column with two I-section cantilevers, including loads.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Column with Cantilevers
| Block parameters editable dynamically | |
| Number of Nodes | 41 |
| Number of Lines | 66 |
| Number of Surfaces | 31 |
| Number of Load Cases | 3 |
| Total Weight | 1.564 tons |
| Dimensions | 11.15 x 0.66 x 7.22 feet |
| Program Version | 5.24.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
