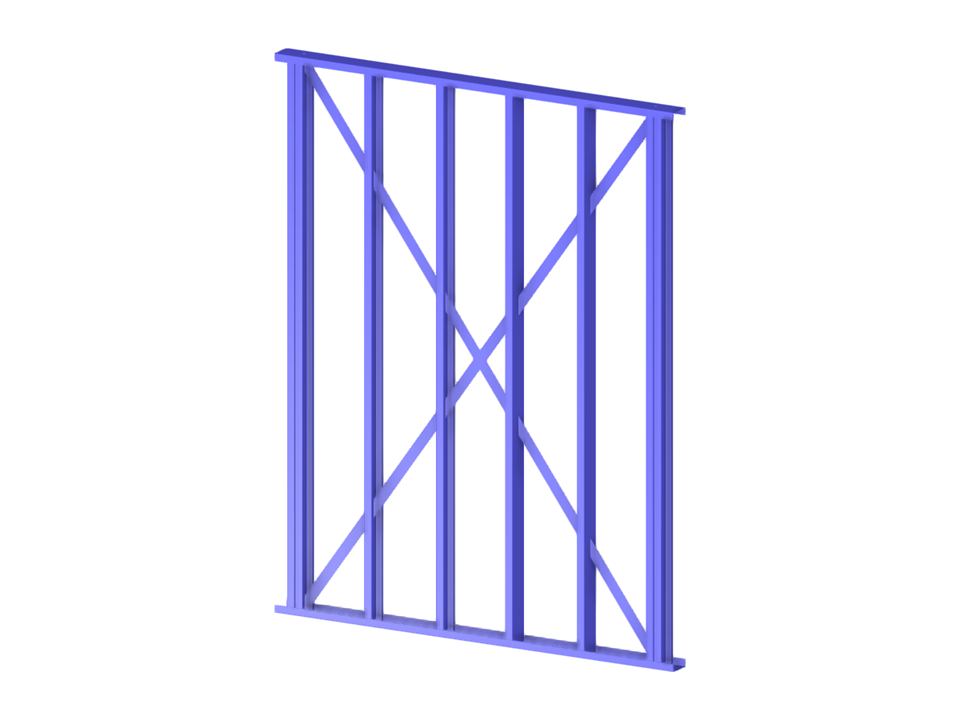

Parametrization of the geometry of a steel framing panel laterally braced by diagonal cross bracing made according to Barbieri catalogue.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Steel Framing Panel
| Block parameters editable dynamically | |
| Number of Nodes | 16 |
| Number of Lines | 10 |
| Number of Members | 10 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.060 tons |
| Dimensions | 6.56 x 8.2 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
