Structural Design:
Eng. Enrique de León

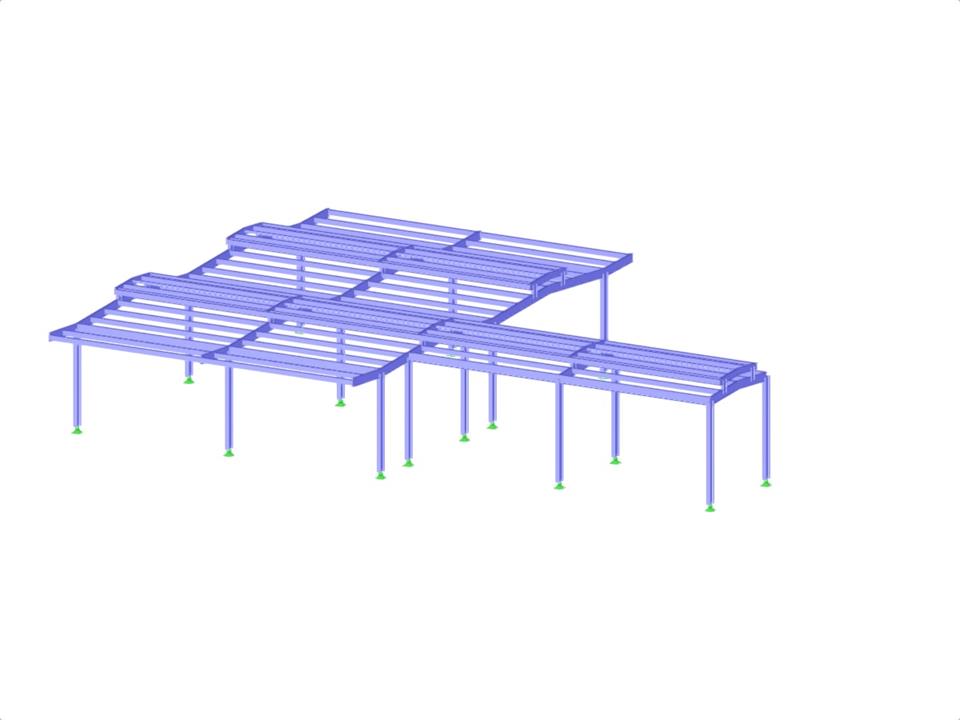

Steel Pergola
| Number of Nodes | 144 |
| Number of Lines | 171 |
| Number of Members | 163 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 6 |
| Total Weight | 10.940 tons |
| Dimensions | 82.02 x 14.63 x 65.6 feet |
