This model showcases a structural connection of a purlin to a roof beam using an equal angle section, bolted together. Such a connection often provides enhanced stability and load distribution for roof structures. Analyzing and designing these connections are crucial for ensuring the strength and safety of the entire framework.

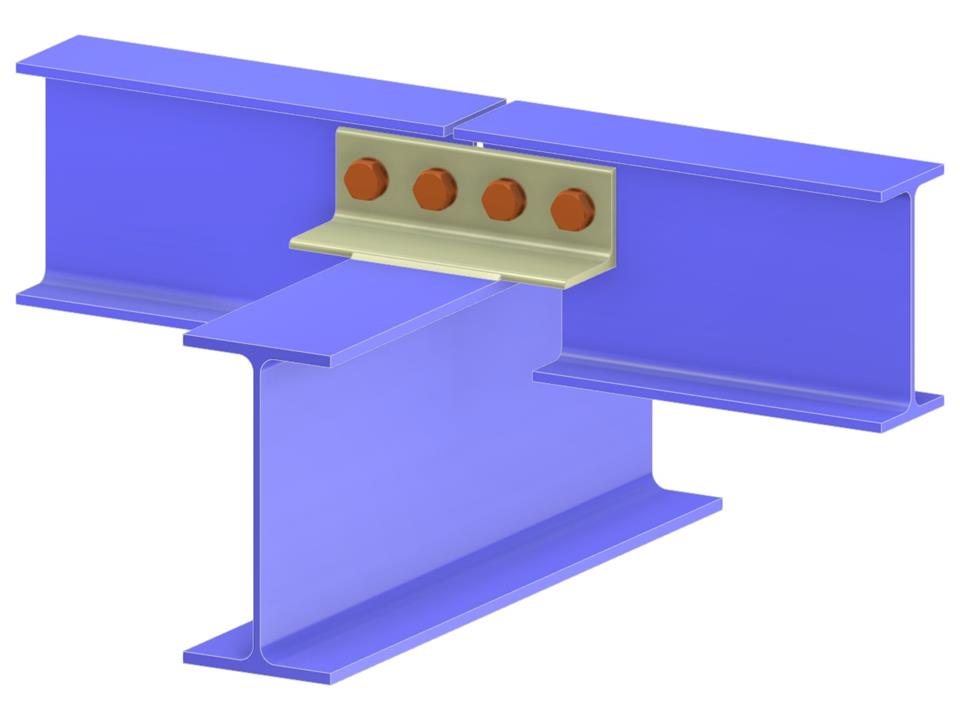

Purlin to Roof Beam via Equal Angle
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.111 tons |
| Dimensions (Metric) | 1,000 x 0,000 x 2,000 m |
| Dimensions (Imperial) | 3.28 x 0 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
