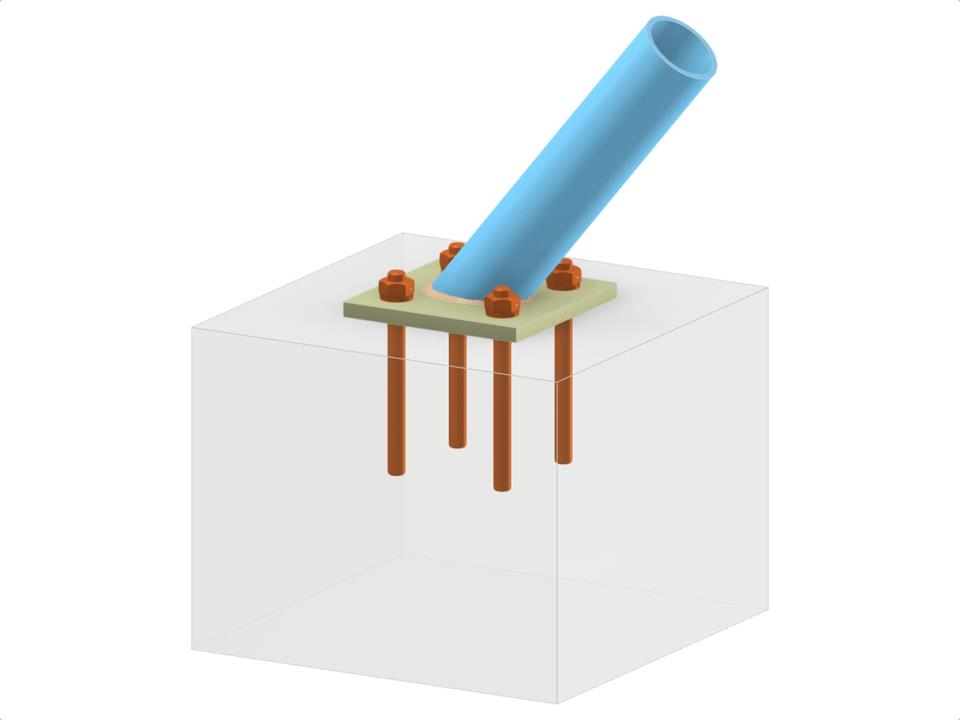

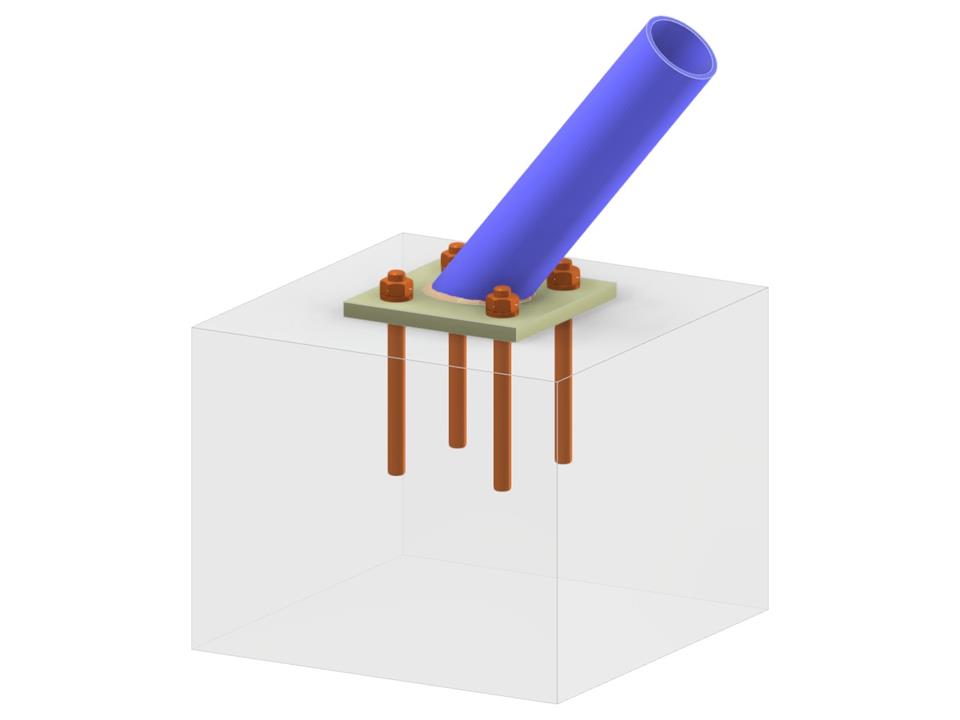

This model features a column base plate design supporting an inclined CHS (Circular Hollow Section) column. It includes anchoring details for stability and proper load transfer. The model showcases the interaction between base plate and anchoring components, providing insights for structural analysis and design.
Column Base Plate with Inclined CHS Column
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.006 tons |
| Dimensions (Metric) | 0,450 x 0,550 x 0,000 m |
| Dimensions (Imperial) | 1.48 x 1.8 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
