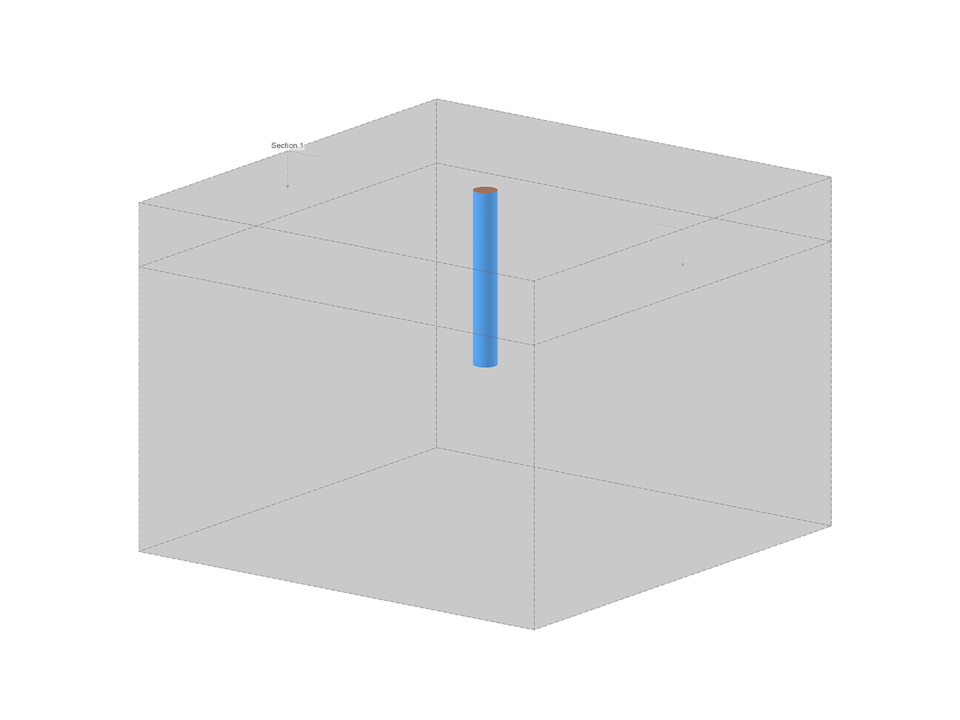

The model shows a single pile, taking into account a soil solid with modified hardening soil. Construction stages and a detailed calculation diagram monitor the load-deformation behavior. It is used for precise calibration and analysis of pile foundations and soil mechanics. The resulting load-deformation curve helps engineers to derive realistic design diagrams.
Model Used in
Single Pile Model for Calibration Using Load-Deformation Curves
| Number of Nodes | 14 |
| Number of Lines | 21 |
| Number of Members | 1 |
| Number of Surfaces | 11 |
| Number of Solids | 2 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 15216.300 t |
| Dimensions (Metric) | 26.000 x 19.000 x 26.000 m |
| Dimensions (Imperial) | 85.3 x 62.34 x 85.3 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
