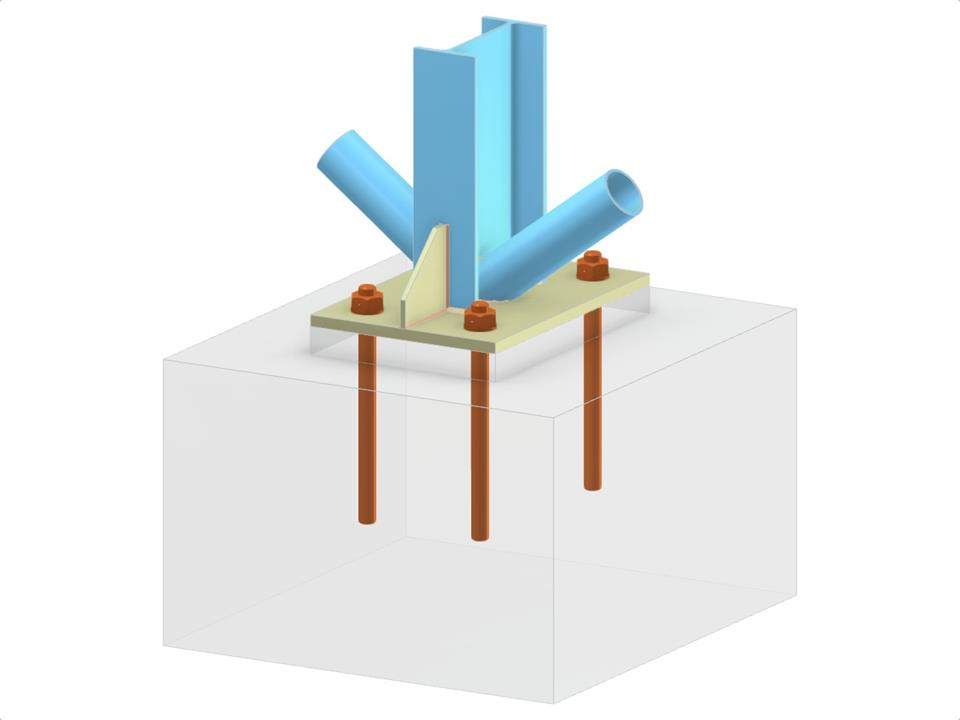

This model features a column base structure with an I-profile column and two diagonal CHS (Circular Hollow Section) connections to the column web. It includes a base plate with ribs and a welded diagonal connection. The column anchoring is meticulously designed for stability and load distribution.
Column Base with Two Diagonals of Vertical Bracing
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.058 tons |
| Dimensions (Metric) | 2,600 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 8.53 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
