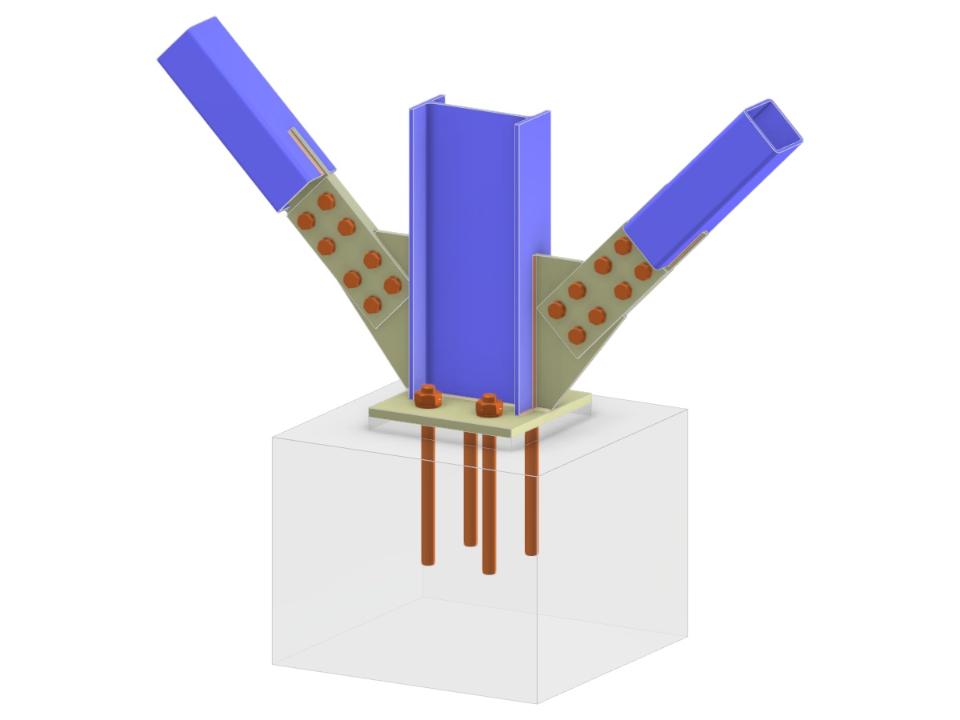

This model features a column base connection composed of an I-profile column, reinforced by two rectangular hollow section (RHS) diagonals attached to the column flanges. It includes a base plate, gusset and tongue plates, and cover plates. The structure is completed with a bolted diagonal connection and anchoring, ensuring stability and load transfer.
Column Base with Two Diagonals of Vertical Bracing
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.095 tons |
| Dimensions (Metric) | 2,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
