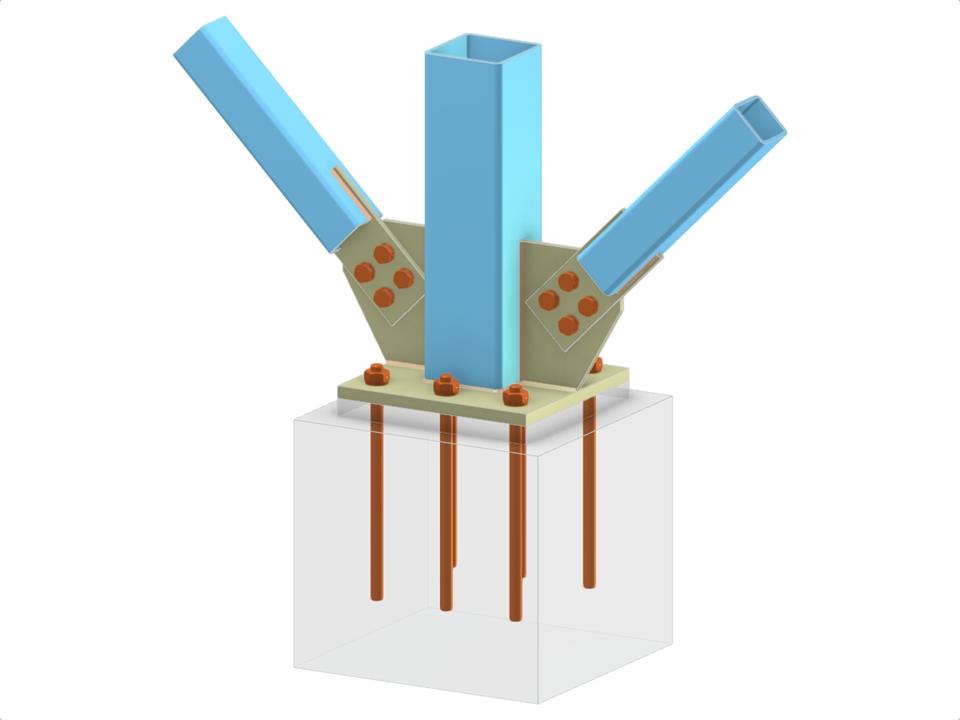

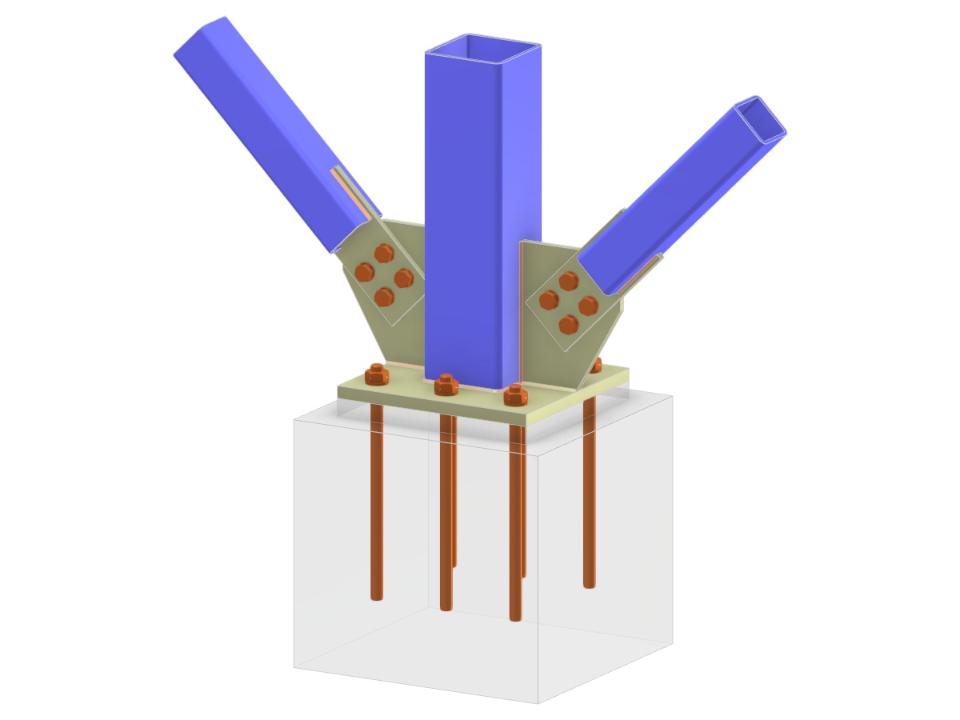

This model features a column base with an RHS (Rectangular Hollow Section) column and two diagonals, utilizing a base plate and ribs as gusset plates. The configuration includes a connecting tongue plate and a bolted diagonal connection, ensuring stability and support. The anchoring system provides strength to the structural elements and improves load transfer. The structural details are implemented to maximize efficiency and safety in design.
Column Base and Bolted Diagonal Connection
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.056 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
