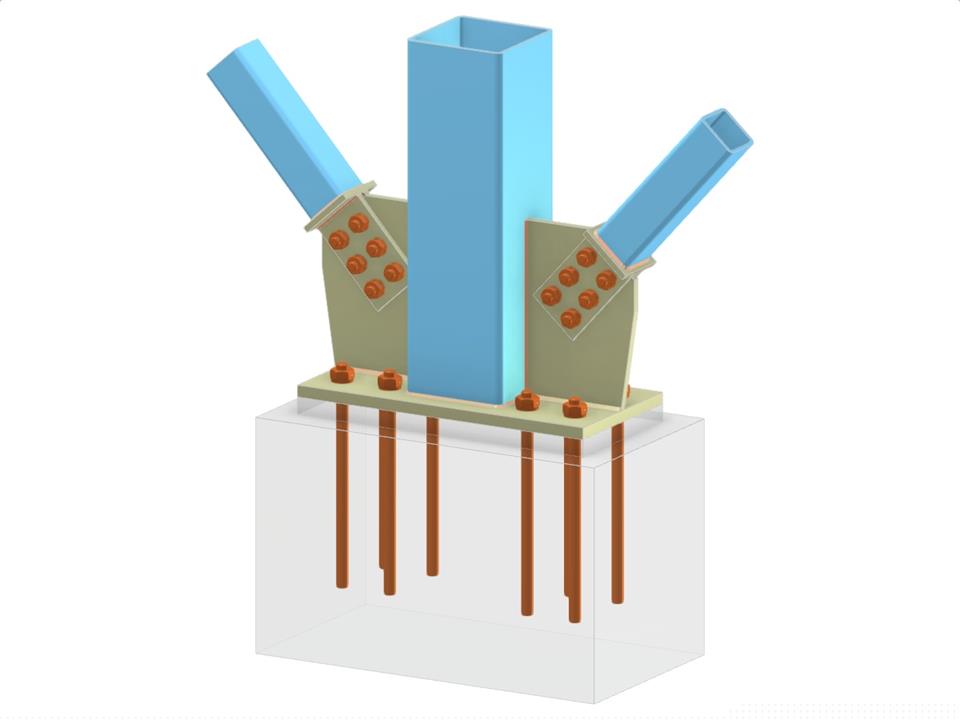

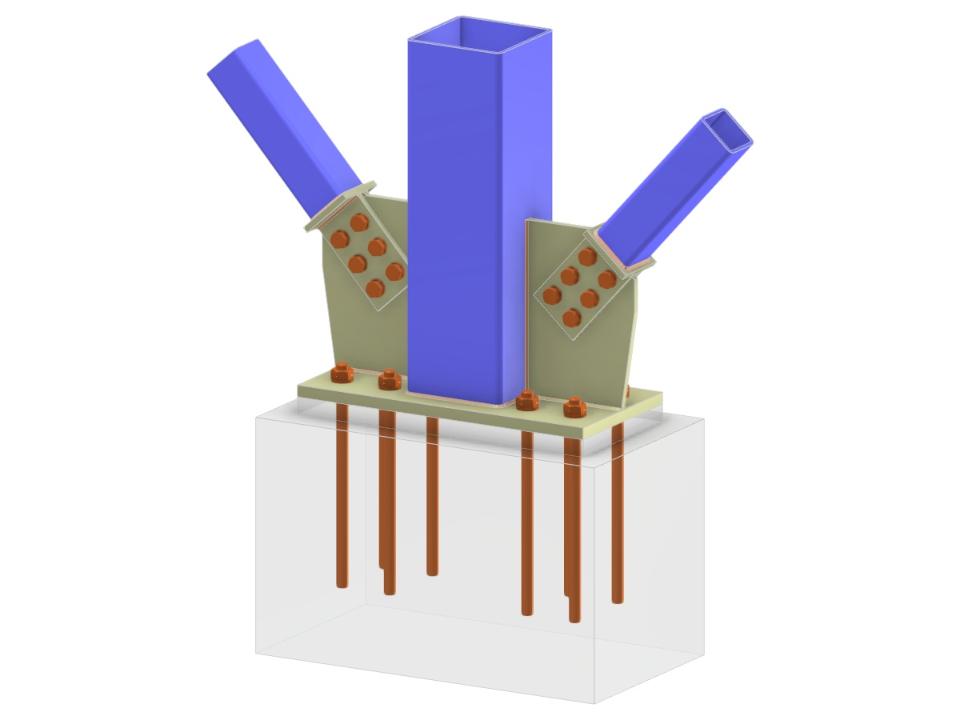

This model details a sophisticated structural assembly featuring a steel column base with a rectangular hollow section (RHS). The design incorporates two diagonal members, each fashioned from RHS, along with a substantial base plate. A through-going gusset plate affixes the diagonals to the column, complemented by connecting plates and a cap plate at the top. The assembly is reinforced with a bolted diagonal connection and anchoring system, ensuring robustness and stability.
Column Base and Bolted Diagonal Connection
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.062 tons |
| Dimensions (Metric) | 1.800 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 5.91 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
