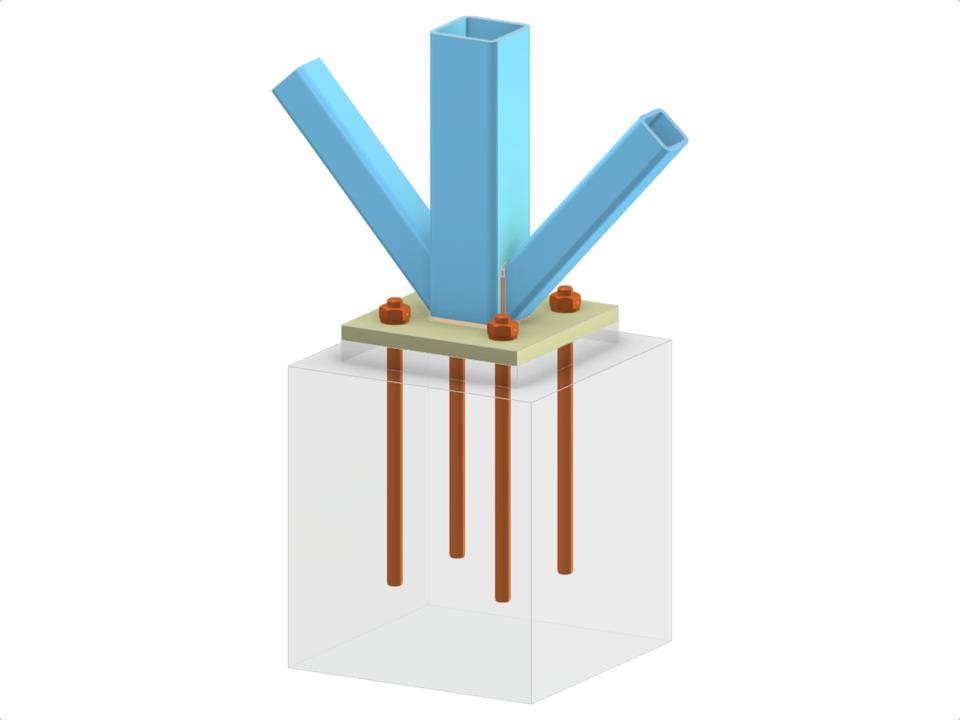

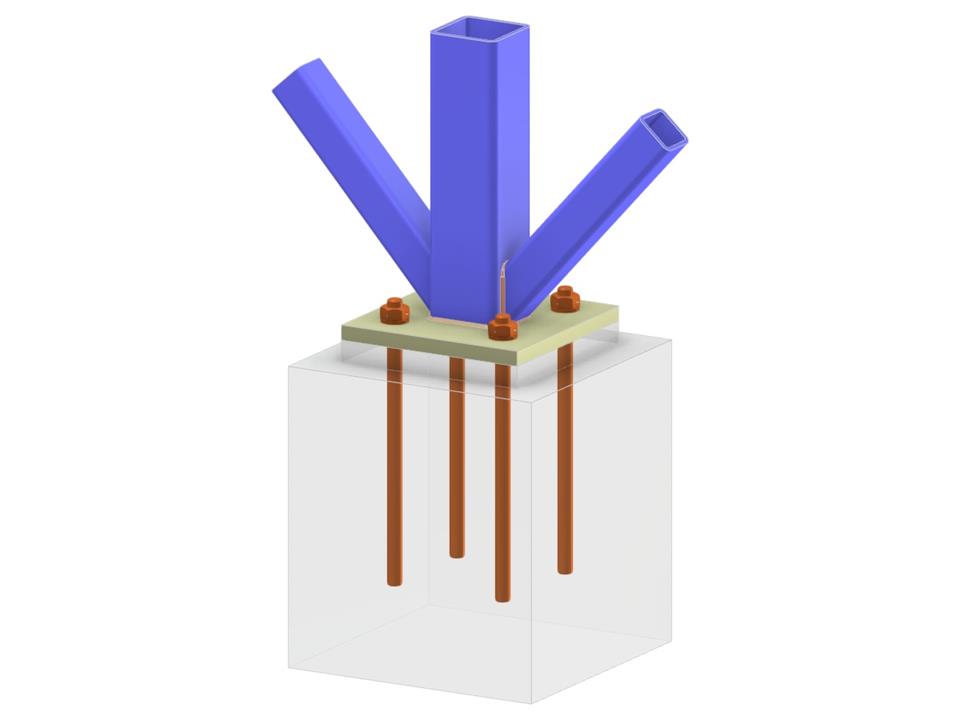

This model involves the design of a steel column base featuring a rectangular hollow section (RHS) column and two RHS diagonals. It includes a base plate with a welded diagonal connection and appropriate anchoring systems. The setup provides stability and connection efficiency in structural engineering applications.
Column Base with Two Diagonals of Vertical Bracing
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.039 tons |
| Dimensions (Metric) | 1.800 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 5.91 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
