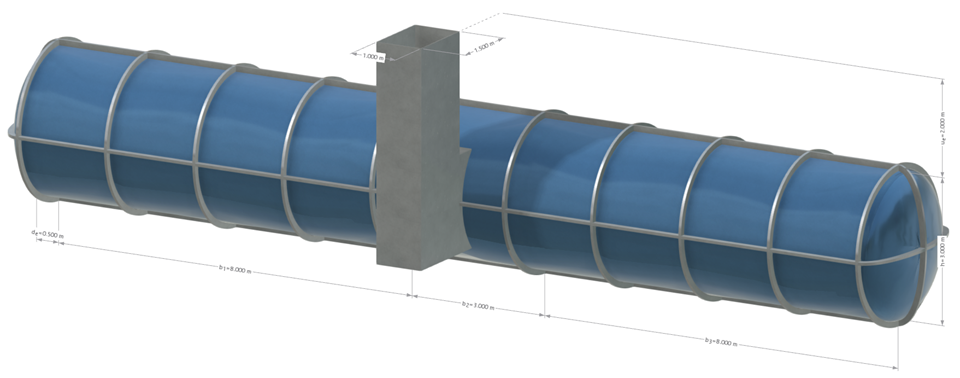

The model shows an embedded double-chamber container made of glass fiber reinforced plastic (GRP) that is optimized for uplift loads. The focus is on the orthotropic shell structure of the container and the effects of earth pressure and uplift forces. Optimization methods are used to ensure efficient container bedding and structural safety.
Model Used in
KB 001968 | Embedded Double-Chamber Container Under Buoyancy
| Number of Nodes | 72 |
| Number of Lines | 140 |
| Number of Members | 101 |
| Number of Surfaces | 41 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 0 |
| Total Weight | 20.412 tons |
| Dimensions (Metric) | 20,000 x 5,000 x 4,618 m |
| Dimensions (Imperial) | 65.62 x 16.4 x 15.15 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
