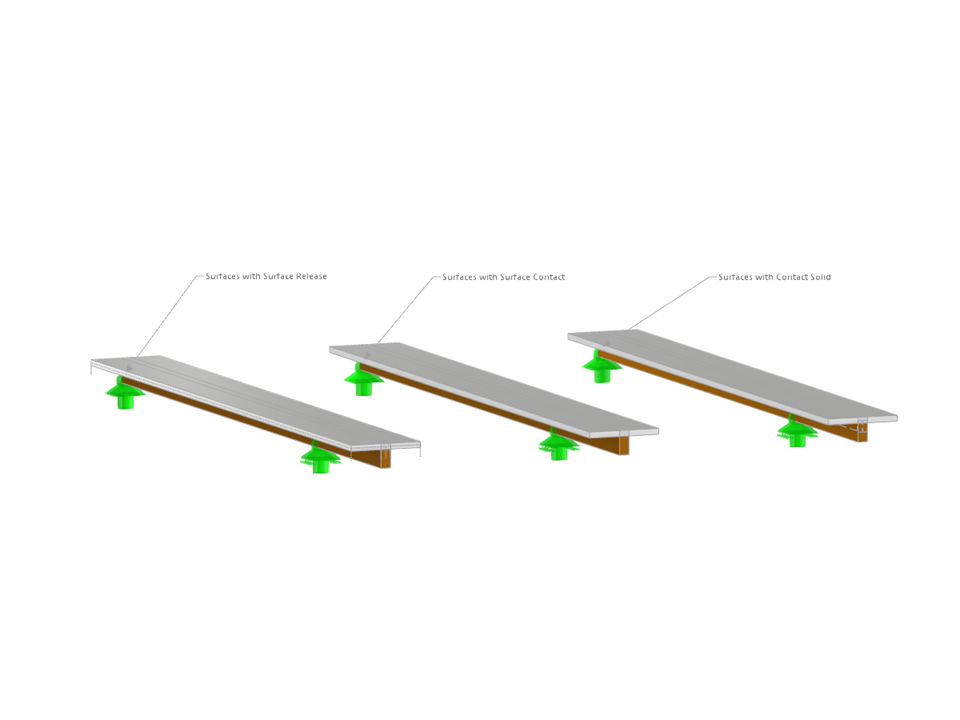

This model shows a timber-concrete composite with different contact variants in order to analyze different connection properties. The timber-concrete composite is a common hybrid structural element that is often used in the renovation and new building of floor structures. By simulating the contact variants, different load transfer mechanisms and stiffnesses can be understood.
Model Used in
Timber-Concrete Composite with Contact Variants
| Number of Nodes | 66 |
| Number of Lines | 94 |
| Number of Members | 0 |
| Number of Surfaces | 20 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.011 tons |
| Dimensions (Metric) | 8,000 x 0,145 x 6,870 m |
| Dimensions (Imperial) | 26.25 x 0.48 x 22.54 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
