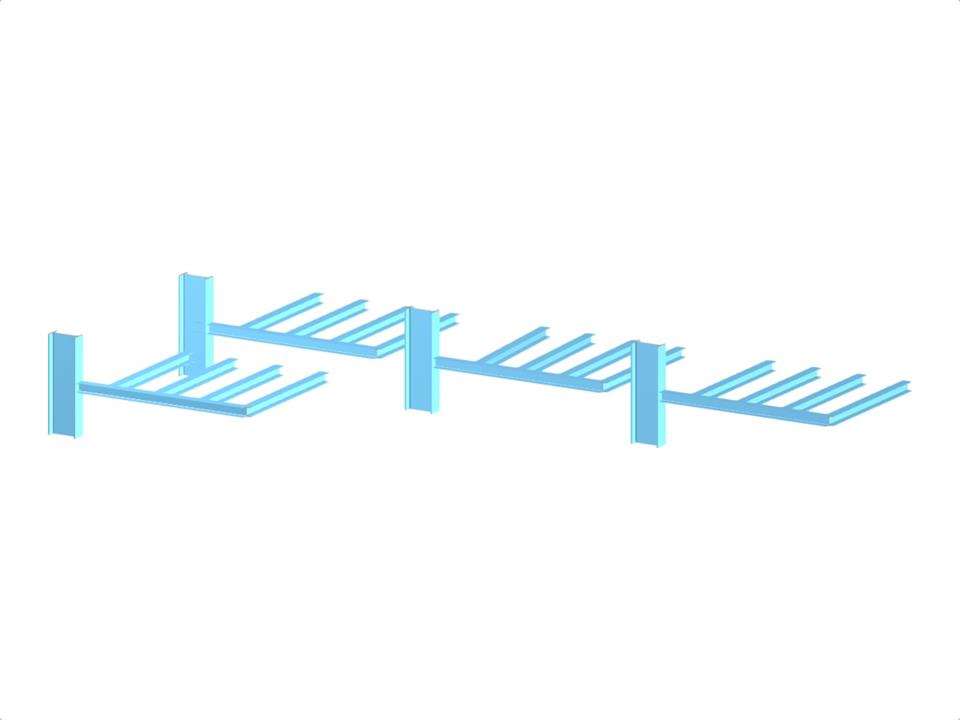

Model explaining the behavior of “nodes on member” when an axial eccentricity is entered subsequently.
Model Used in
Nodes on Member in Connection with Axial Eccentricity
| Number of Nodes | 45 |
| Number of Lines | 25 |
| Number of Members | 25 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.363 t |
| Dimensions (Metric) | 14.000 x 2.000 x 8.000 m |
| Dimensions (Imperial) | 45.93 x 6.56 x 26.25 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
