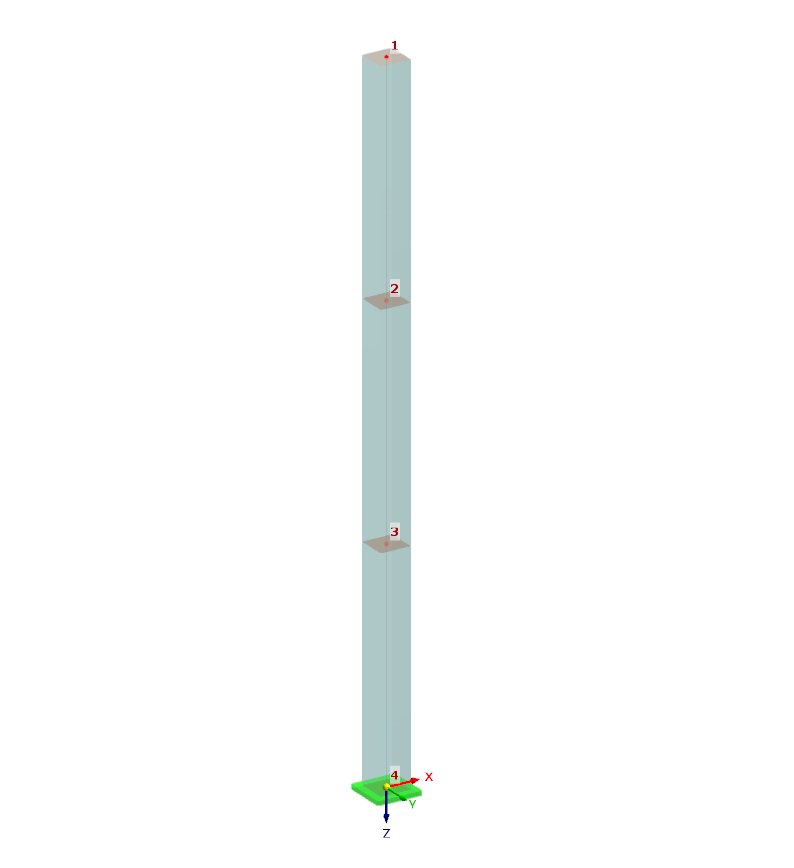

Column with three members representing a 3-floor building as described in Knowledge Base article 001985. The type of model is "2D | XZ | Plane stress" and mesh settings are set to not have divisions in the members, thus ensuring a 3-DOF system. Several static load cases and Response Spectrum Analysis are defined.
Column Representing 3-DOF System for RSA Load Generation
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.600 tons |
| Dimensions (Metric) | 0.000 x 9.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 29.53 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
