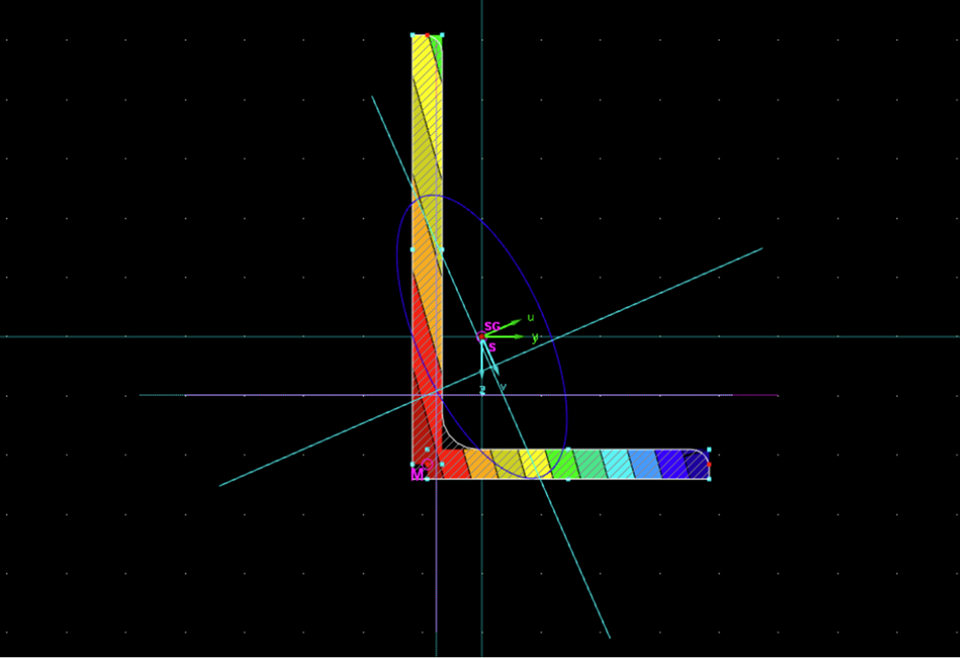

The model shows an angle 150x100x10 on which the cross-section properties were calculated.
Model Used in
FAQ 5770 | Model to Download, Activating / Deactivating Cross-Section Properties
| Number of Nodes | 4 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 0.100 x 0.000 x 0.150 m |
| Dimensions (Imperial) | 0.33 x 0 x 0.49 feet |
| Program Version | 9.18.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
