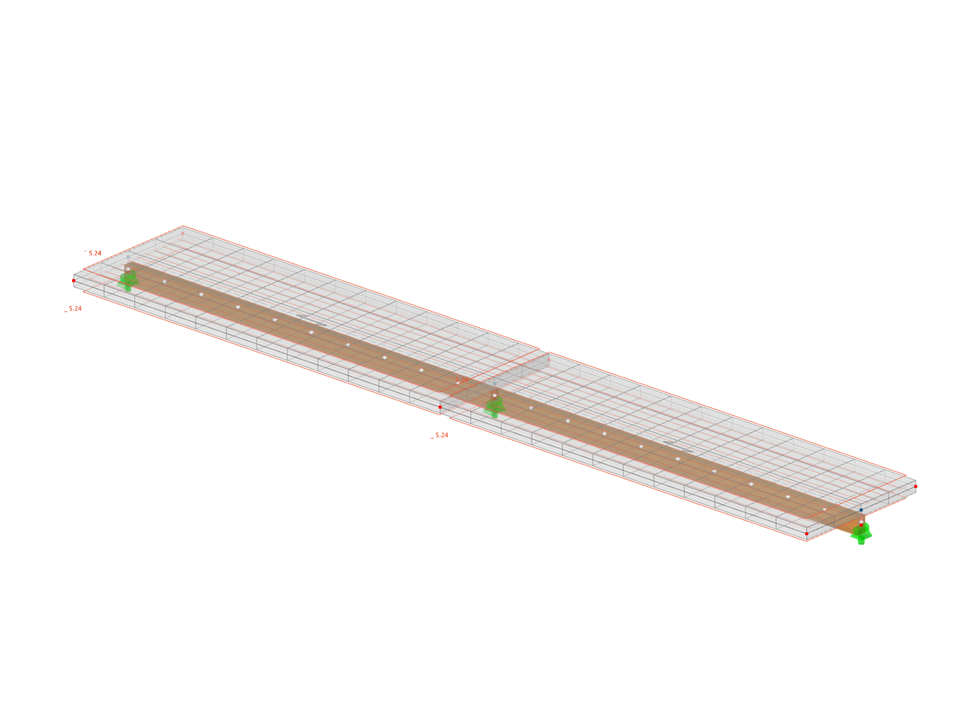

The model shows the structural analysis of a timber-concrete composite beam. This structure combines the positive properties of timber and concrete to achieve more efficient load-bearing capacity and improved strength. The configuration provides valuable insights into the optimization of material combinations for load-bearing structures and is a practical example of its use in modern structural projects.
Model Used in
Timber-Concrete Composite Beam
| Number of Nodes | 12 |
| Number of Lines | 11 |
| Number of Members | 2 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 9.761 t |
| Dimensions (Metric) | 12.000 x 0.200 x 2.000 m |
| Dimensions (Imperial) | 39.37 x 0.66 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
