The model contains the correct definition of the gap in the last component “splice plate”. The subsequent components of type “splice plate” are recognized and also displayed.
Model Used in

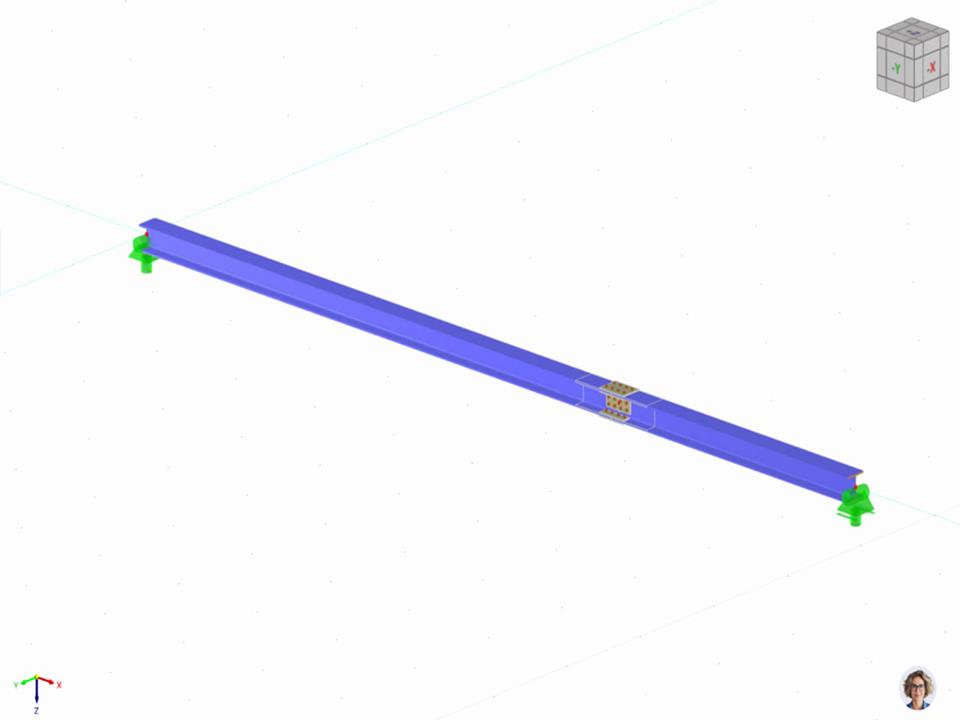

FAQ 5776 | Corresponding Model, Modeled in RFEM 6
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.643 t |
| Dimensions (Metric) | 9.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 29.53 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
