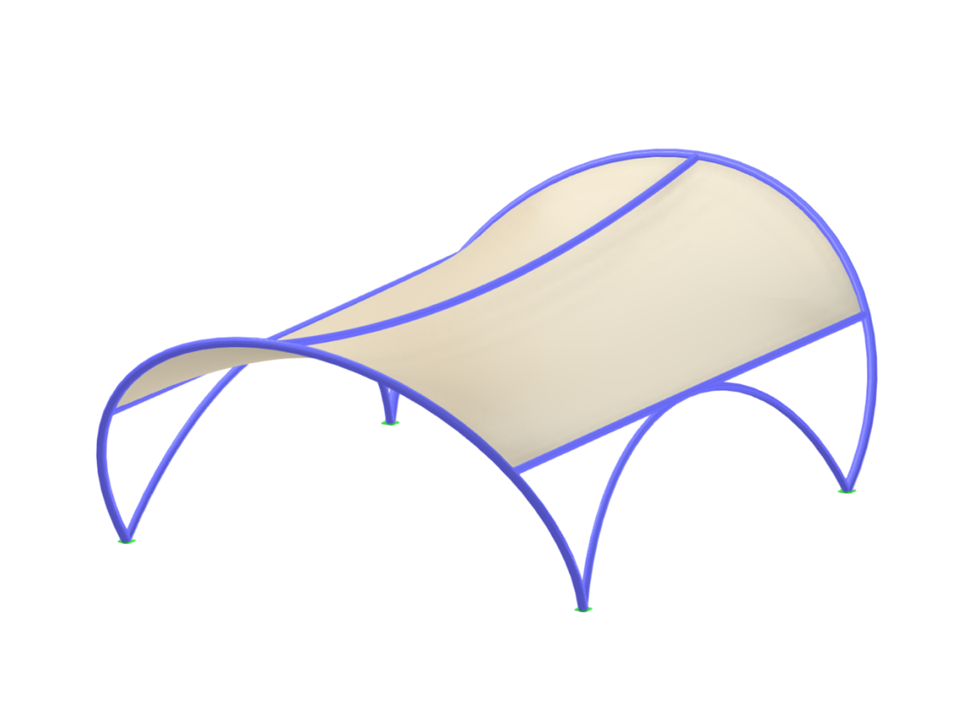

This model features a textile membrane structure supported by a steel frame, utilizing the Form-Finding add-on in RFEM 6. The form-finding process is employed to achieve the most efficient and aesthetically pleasing shape for the membrane under the given loads and boundary conditions. This combination of materials and techniques offers a robust solution for tensile architecture.
Textile Membrane Structure on Steel Frame
| Number of Nodes | 12 |
| Number of Lines | 17 |
| Number of Members | 17 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.404 tons |
| Dimensions (Metric) | 10,167 x 5,196 x 16,000 m |
| Dimensions (Imperial) | 33.36 x 17.05 x 52.49 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
