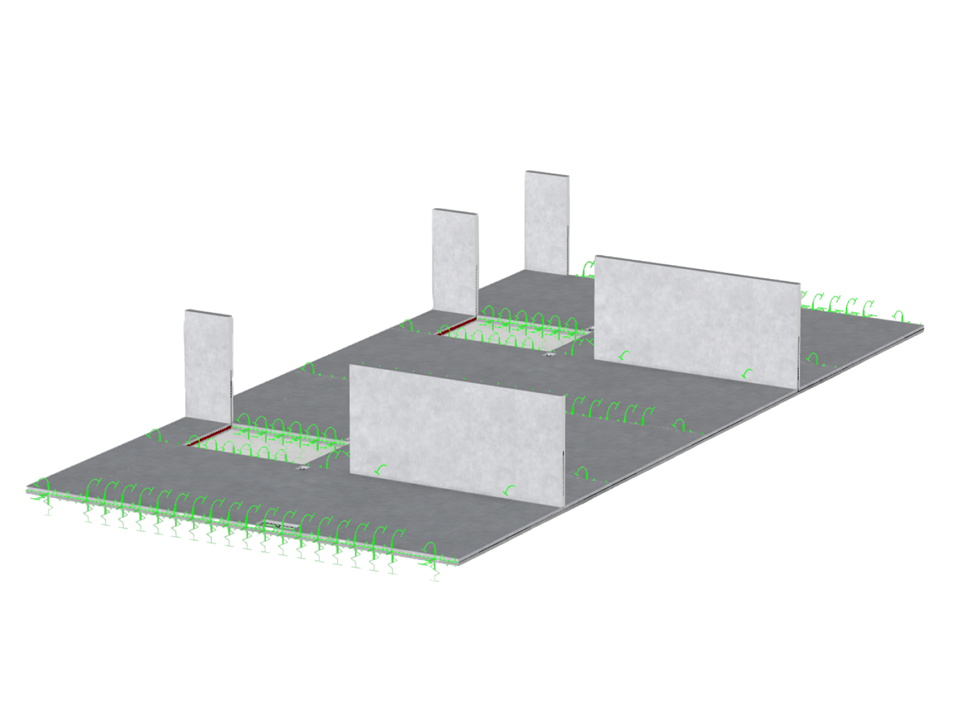

The model was created as part of a project at the Czech Technical University in Prague, designed by Petr Stuchlík as part of the Dlubal Talent ČVUT competition. It is a terraced apartment building with a monolithic reinforced concrete system in Prague 14 – Kyje. The structure includes two above-ground storeys and a partially recessed ground floor with a floor plan of 28.6 × 12.55 m. The analysis focuses on the floor slab above the 2nd floor in RFEM 6, including the interaction of vertical elements, loads according to Eurocodes, and the conceptual design of reinforcement.
Kyje Residential Building
| Number of Nodes | 82 |
| Number of Lines | 69 |
| Number of Members | 7 |
| Number of Surfaces | 20 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 64 |
| Number of Result Combinations | 0 |
| Total Weight | 217,520 t |
| Dimensions (Metric) | 14,050 x 0,000 x 28,600 m |
| Dimensions (Imperial) | 46.1 x 0 x 93.83 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
