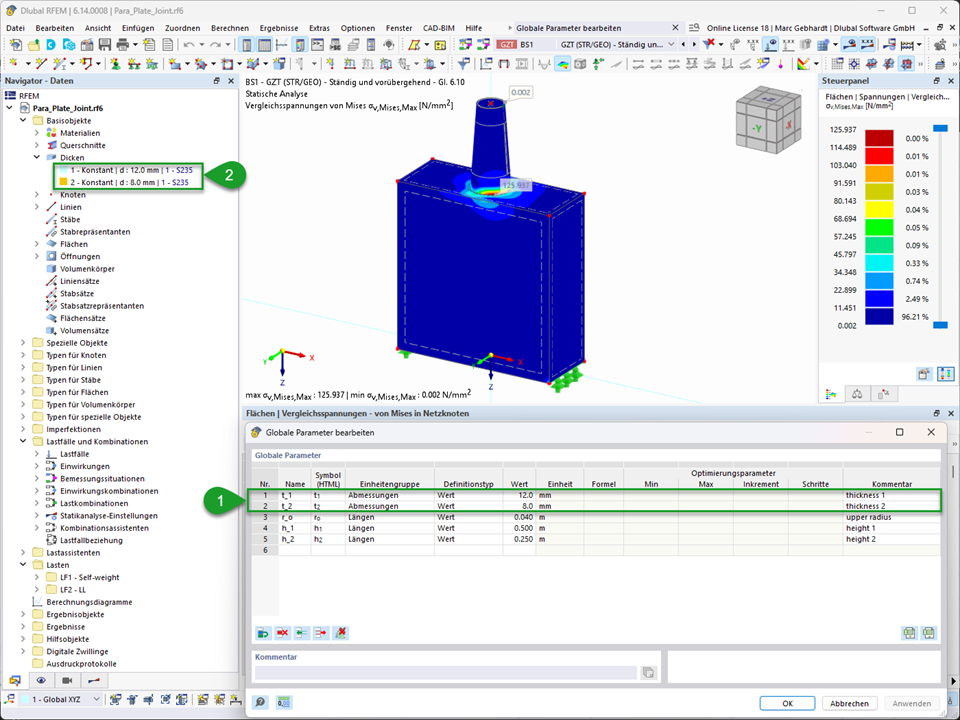

The model shows a simple parameterized box with a conical tube attached to it. The support is modeled as a hinged connection along two lines on the bottom side, and the load is applied as a component-by-component concentrated load to a rigid diaphragm at the upper edge of the cone.
Model Used in
KB 2055 | Parametric Box with Attached Conical Tube
| Number of Nodes | 13 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.076 t |
| Dimensions (Metric) | 0.488 x 0.750 x 0.188 m |
| Dimensions (Imperial) | 1.6 x 2.46 x 0.62 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
