Concrete Design for RSTAB 9

Reinforced concrete is one of the most frequently used building materials. Using the Concrete Design add-on, you can perform the ultimate and serviceability limit state design of members and member sets.

Subnavigation

Members

Reinforced concrete is one of the most popular building materials. The Concrete Design add-on allows you to perform the ultimate and serviceability limit state design of concrete members and member sets.

The internal forces from RSTAB are imported automatically.
Ultimate limit state and serviceability limit state design checks are performed.
It is possible to apply user-defined limit values and parameters, based on the integrated National Annexes (NA).
Detailed setting options of the basis and extent of calculations provides you with higher flexibility.
The result output is fast and clearly arranged, which allows you to check the result distribution right after the design checks.

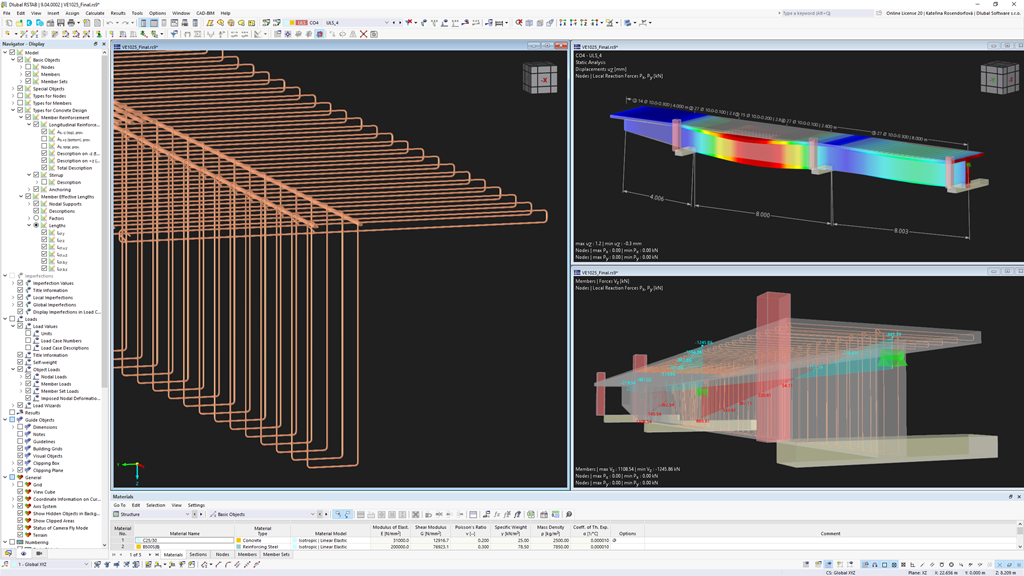

The results are displayed graphically in RSTAB, including design criteria and required reinforcement
Numerical results are clearly presented in tables, and you can also display the results graphically in the structure.
The results are seamlessly integrated into the RSTAB printout report.

Webinar: Modeling and Design of Reinforced Concrete Structures in RFEM 6 and RSTAB 9

Concrete Design for RSTAB 9

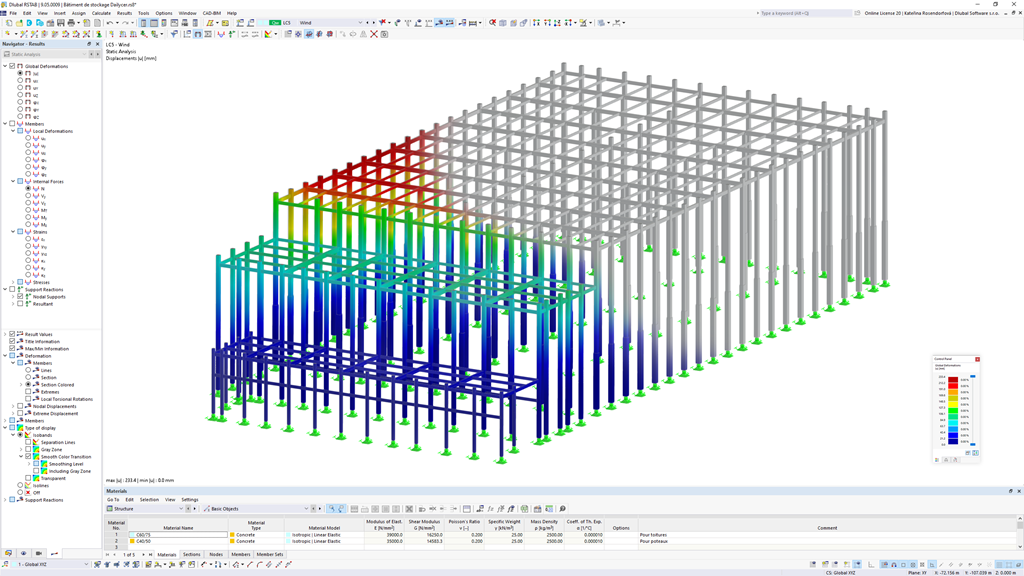

Storage Facility Construction in Faverolles, France | © SPIC SAS

Webinar: Modeling and Design of Reinforced Concrete Structures in RFEM 6 and RSTAB 9

Concrete Design for RSTAB 9

Storage Facility Construction in Faverolles, France | © SPIC SAS

Webinar: Modeling and Design of Reinforced Concrete Structures in RFEM 6 and RSTAB 9

Advantages of Concrete Design

Design of beams, and compression members in just one add-on
Detailed documentation of the performed design checks of the structural components
Checking internal forces on member ends, members

Output of cross-section resistance using interaction diagrams
Definition of different integration widths of ribs in a member
Consideration of the member reinforcement in the rib design

Designed with Concrete Design for RSTAB 9

Reinforced Concrete Hall with Single Foundation Design

Here you can download the reinforced concrete hall with dimensioned single foundations and open it in RSTAB.

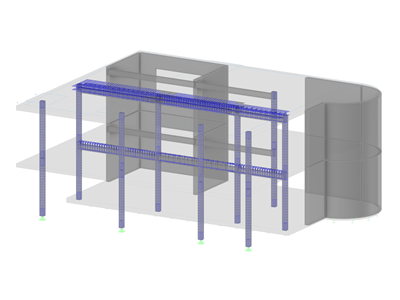

Concrete Structure

Download the model of a concrete structure here and open it in the structural frame & truss analysis software RSTAB.

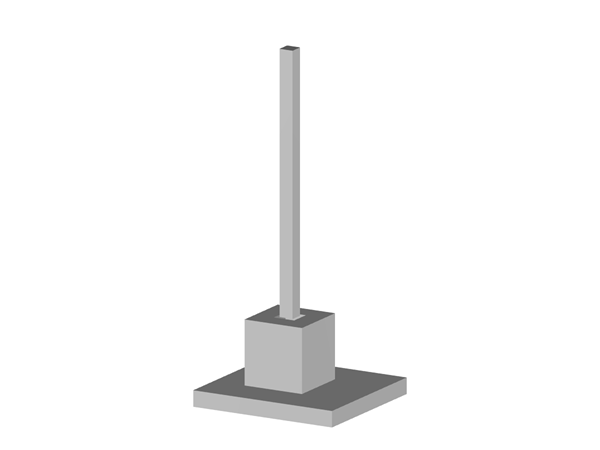

Concrete Column with Bucket Foundation

Download the model of a concrete column with a bucket foundation here and open it in the structural frame & truss analysis software RSTAB.

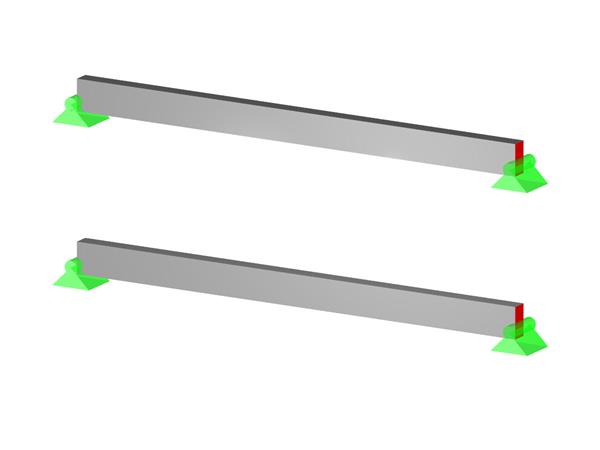

Single-Span Beam

Download the model of a single-span beam here and open it in the structural frame & truss analysis software RSTAB.

Other Models

Member Design

Use this add-on to define the settings for longitudinal, transverse, and torsional reinforcement, as well as the neutral axis depth, the edge and steel deformations. The program provides you with the option to consider the deformations in cracked state (state II) according to ACI 318‑19 and EN 1992‑1‑1, to check tension stiffness, to monitor creep, shrinkage and fatigue according to EN 1992‑1‑1, to perform seismic analyses according to EC 8, and to calculate many other indicators.

More Info

Input

Dlubal Software makes many of your work steps easier to support you as much as possible. The data input is facilitated by preset specifications of members, member sets, materials, and sections in RSTAB. You can use the [Select] function, available at many places of the program,in order to select the elements graphically. Furthermore, you have access to the global material and cross-section libraries.

More Info

Results

The program presents the results of the individual design checks, such as the ultimate limit state, the serviceability limit state, or the compliance with the construction rules, clearly displayed in a table. The required reinforcement is also clearly displayed in the result tables. All intermediate values are displayed in a transparent and comprehensible manner in the program.

More Info
