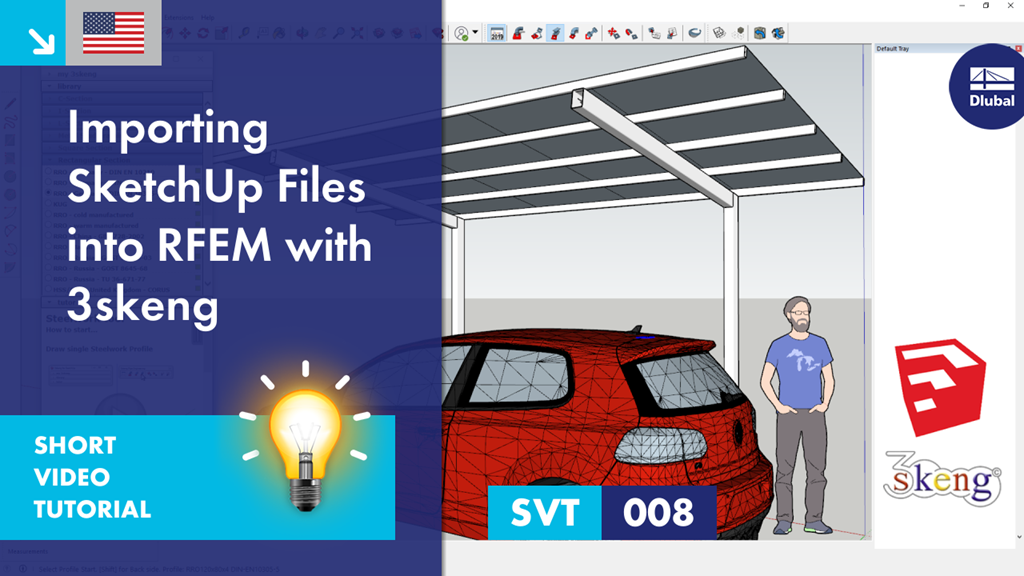

The video shows how to export SketchUp models to Dlubal Software with the 3skeng Steelwork Tool. Using the IFC interface, a carport model is imported into the FEM structural analysis program RFEM or the structural framework program RSTAB and further edited.
The 3skeng software allows you to create steelwork models in SketchUp and export an IFC file that is optimized for Dlubal. As an example, a carport structure is used for the structural analysis in RFEM.
