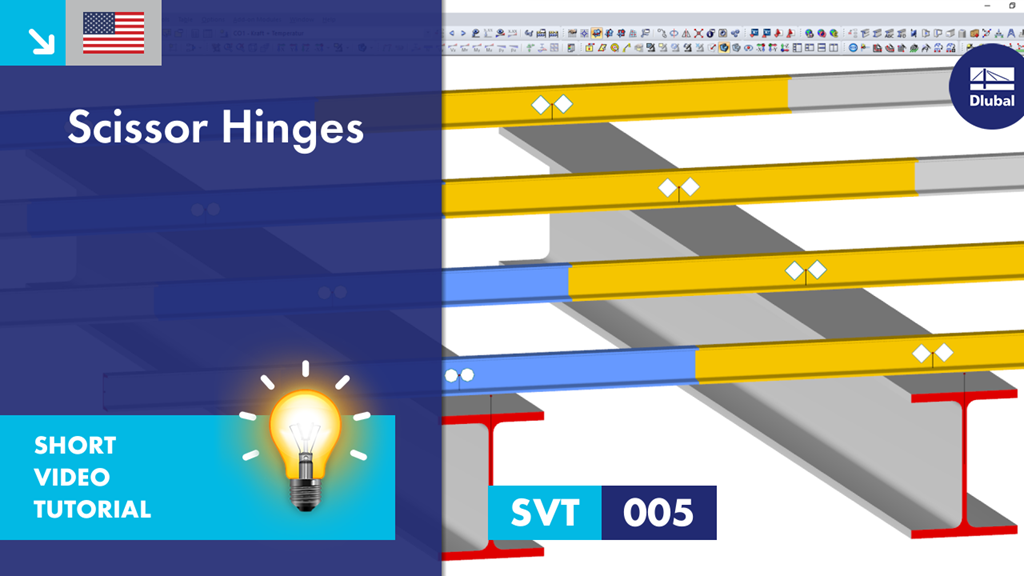

The Short Video Tutorial explains how to define scissor hinges in the case of crossing members in the FEM structural analysis program RFEM or the framework program RSTAB by Dlubal. Using member eccentricities, superimposed beams are modeled. Scissor hinges transfer moments in the direction of continuity of the members, but do not transfer them to the crossing member pair.
SVT 005 | Scissor Hinges
