Question:

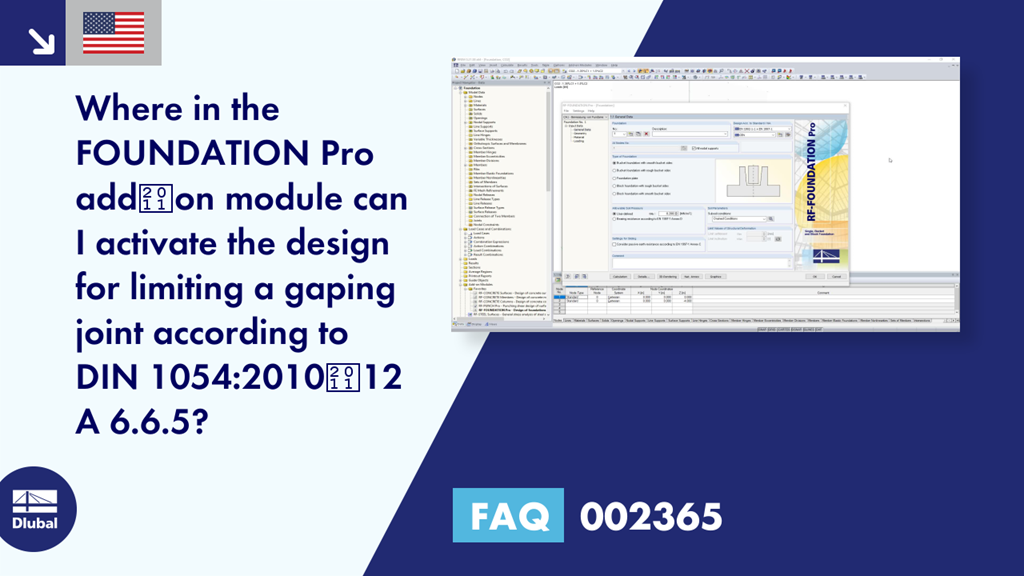

Where in the FOUNDATION Pro add‑on module can I activate the design for limiting a gaping joint according to DIN 1054:2010‑12 A 6.6.5?
Answer:
To do this, it is necessary first to select "DIN" as National Annex in "Window 1.1 General Data". Then, you can open [Details...]. Here you can find the design for limiting the gaping joint under the "Highly eccentric loading in the core" option. See Image 01.
