Where in the FOUNDATION Pro add‑on module can I activate the design for limiting a gaping joint according to DIN 1054: 2010‑12 A 6.6.5?

Answer

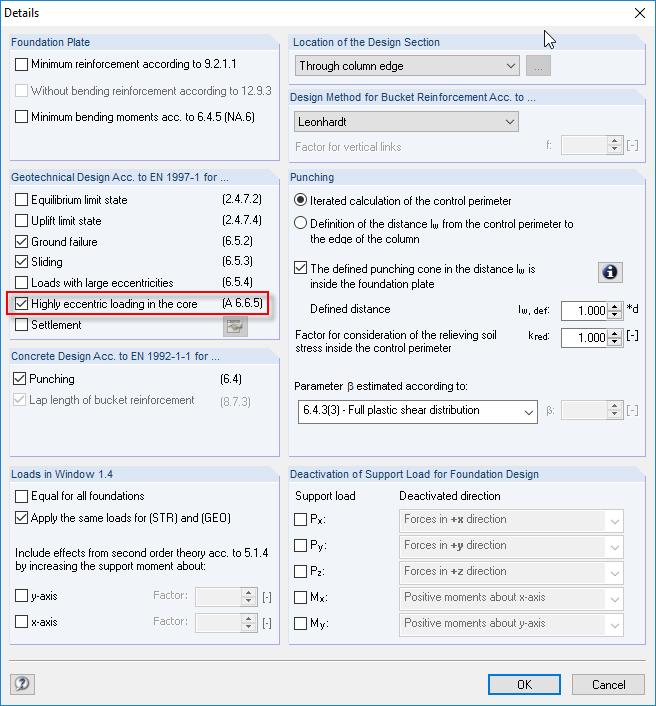

For this, it is necessary to select 'DIN' as National Annex in 'Window 1.1 General Data' first. Then, you can open [Details...]. Here you can find the design for limiting the gaping joint under the 'Highly eccentric loading in the core' option. For this, see Figure 01.

Keywords

FOUNDATION Pro FOUNDATION RF-FOUNDATION Pro Foundation rotation Gaping joint Ground failure Foundation EC7
